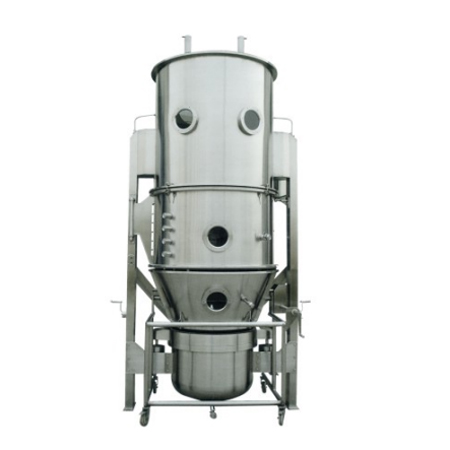

FL Series Vertical Fluidizing Dryer

FL Series Vertical Fluidizing Dryer

 Item

  Unit Type
3 5 15 30 60 120 200 300 500 1000
Container  Volume L 12 22 45 100 220 420 670 1000 1500 3000
 Diameter mm 300 400 550 700 1000 1200 1400 1600 1800 2200
Capability  Min Kg 1.5 4 10 15 30 80 100 150 250 800
 Max Kg 4.5 6 20 45 90 160 300 450 750 1200
Fan Capacity m³/h 1000 1200 1400 1800 3000 4500 6000 7000 8000 13670
Pressure mmH₂O 375 375 480 480 950 950 950 950 950 1400
Power kw 3 4 5.5 7.5 11 18.5 22 30 45 90
Steam expenditure



 Kg/h 15 23 42 70 141 211 282 366 451 750
 Compressed air expenditure m³/min 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.5 1.5 4.0
 Weight of the main body Kg 500 700 900 1000 1100 1300 1500 1800 2000 3500
 Steam pressure Mpa 0.1~0.6
 Temperature °C  (adjustable at the range from room temperature to 120℃)
 Working time min (decided in accordance with the properties of raw materials)
 Field % ≥99
 Noise dB(A) (When installation, main machine is separated from fan) noise ≤75dB(A)
 Size (L×W×H) m 1.0×0.6×2.1 1.2×0.7×2.3 1.25×0.9×2.5 1.6×1.1×2.5 1.85×1.4×3 2.2×1.65×3.3 2.34×1.7×3.8 2.8×2.0×4.5 3×2.25×5.0 4×2.8×7.2

Application
1. Phamaceutical industry: tablet, capsule, low sugar or no sugargranule of chinese medicine.
2. Foodstuff:cocoa,coffee,milkpowder, juice of granulate,flavoring and so on.
3. Other industries: peticide, feed chemical fertilizer, pigment,dyestuff and so on.
4. Drying of powder or granular wet material.
5. Coating: granule, pill protection layer, color preparedness,sustained-release,film,enteric coating.

Principle
The powder grannle in the container (fluidization)appear in the stateof fluidization. It is preheated and mixed with chen and heated air.At the same time the solution of adhesive solvent is fogged andsprayed into the container.It makes the some particles becomegranulating that contains adhesive. Being of unceasing dry throughhot air,the moisture in the granulation is evaporated and theadhesive is solidification. The process is carried out continuouslyFinally it forms ideal, uniform and Porous granules.

Features
1. Because of powder Granulation, the fluidity is improved andthe dust is reduced;
2. Because of powder Granulation, its solving property isimproved;
3. The mixing, Granulation and drying can be completed in onestep inside the machine;
4. The operation of equipment is safe because the anti staticfiltering cloth is adapted;
5.The operating personnel can not be damaged if explosion takeplace because there is releasing hole.
6.The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet therequirements of GMP.

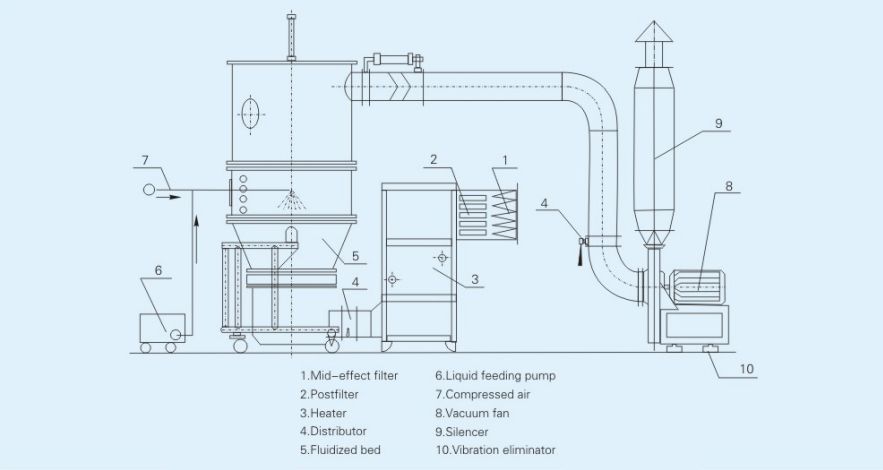

Sketch of Flow Chart
