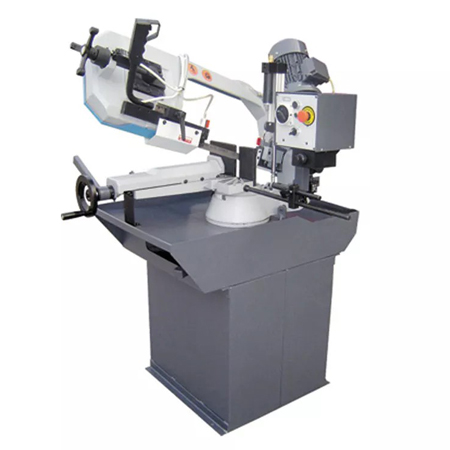

| Model | BS-280G | |
| Cut Circular @90° | 220mm(8.6”) | |
| Cut Rectangular @90° | 250x155mm (10”x6.1”) | |
| Cut Circular @60° | 100mm (4″) | |
| Cut Rectangular @60° | 80x95mm (3.1″x3.7″) | |
| Cut Circular @45° | 160mm(6”) | |
| Cut Rectangular @45° | 160×110 mm (6.3”x4.3”) | |
| Blade speed @50Hz | 40/80 MPM | |
| Blade size | 27X0.9X2450mm | |
| Motor power | 0.75/1.1 kW 1.0/1.5 HP (3PH) | |
| Drive | Gear | |
| Packing size | 133x80x110cm (body)67x40x62 cm (stand) | |
| N.W./G.W. | 254/287 kg | |
Features:
1. CE standard metal cutting saw max. cutting 220mm round at 90°
2. Gear Drive, double cutting speed
3. Cast iron saw frame miter max 60°
4. Quick action lock/release lever for swivel head
5. Coolant system to help clean chips on blade and lubrication the teeth
6. Electronic trigger handle lets you easily turn the saw on and off
7. Control pane mounted for easy access
8. Hydraulic descent, variable feeding speed
