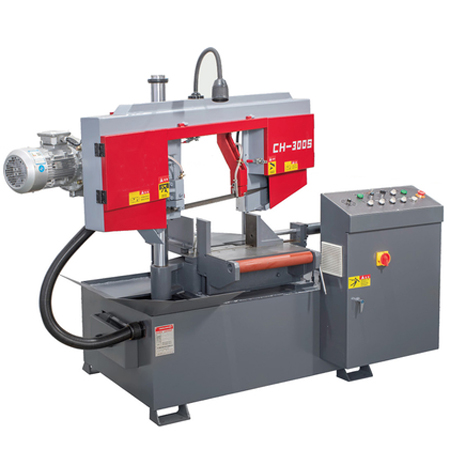

CH-300S Angle Cutting Band Saw Machine

CH-300S Angle Cutting Band Saw Machine

  • Model:CH-300S
  • Categories:Mitre Band Saw Machine
  • Circular : 300 mm
  • Rectangular : 350W × 300H
  • Email : contact@he-mu.com
Specification Value / Description
Model CH-300S
Cutting Capacity (mm) 90° ● 300 ■ 350W × 300H
45° ● 230 ■ 180W × 300H
60° ● 130 ■ 130W × 300H
Blade Speed (m/min) 20~80 (variable)
Blade Size (mm) 27 × 0.9 × 3650
Main Motor Power (kW) 2.2
Hydraulic Motor Power (kW) 0.75
Cooling Pump Power (kW) 0.06
Vise Clamping Hydraulic
Blade Tension Manual
Main Drive Structure Worm gear drive
Table Height (mm) 720
Dimensions (L×W×H) (mm) 2100 × 1200 × 1600

Key Features:

Triple-Angle Cutting Capacity:

90°: 350mm width × 300mm height

45°: 180mm width × 300mm height

60°: 130mm width × 300mm height

Precision Components:

Variable blade speed (20-80 m/min) for material adaptability

Hydraulic vise clamping ensures workpiece stability

Worm gear drive for smooth power transmission

Compact Industrial Design:

Low-profile worktable (720mm height)

Space-efficient footprint (2.1m × 1.2m)

Blade Specifications:

Thin 0.9mm blade thickness for precision cuts

3650mm blade length for extended service life

Features
1. In addition to straight cutting, the machine can be manually rotated to an degree of 0-45° to realie angle cutting of materials
2. Hydraulic stepless regulation for feeding and hydraulic automatic saw frame lifting
3. Hydraulic clamping and loosening of the workpiece, easy to operate
4. Saw blade guide with rlling bearings and carbide blocks
