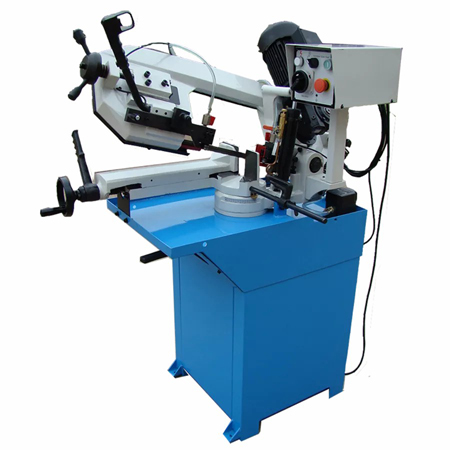

| Model | BS-170G | |
| Cut Circular @90° | 170mm(6.7”) | |
| Cut Rectangular @90° | 200x170mm (7.8”x6.7”) | |
| Cut Circular @60° | 70mm(2.7”) | |
| Cut Rectangular @60° | 60x60mm (2.3”x2.3”) | |
| Cut Circular @45° | 120mm(4.7”) | |
| Cut Rectangular @45° | 110x110mm (4.3”x4.3”) | |
| Blade speed @50Hz | 2P,80MPM 262FPM | |
| Blade speed @60Hz | 4P,40MPM 131FPM | |
| Blade size | 20X0.9X2085mm | |
| Motor power | 0.75/1.1kw 1/1.5HP(3PH) | |
| Drive | Gear | |
| Packing size | 122x72x100cm | |
| N.W./G.W. | 173/225kg | |
Features:
1. 170mm round cutting capacity, 200x170mm rectangular cutting at 90°
2. Gear drive powerful cutting bandsaw
3. Casting iron saw bow miter max. 60°
4. Stop rod to help you get the repeatable cutting
5. Standard coolant system to make blade use longer time
