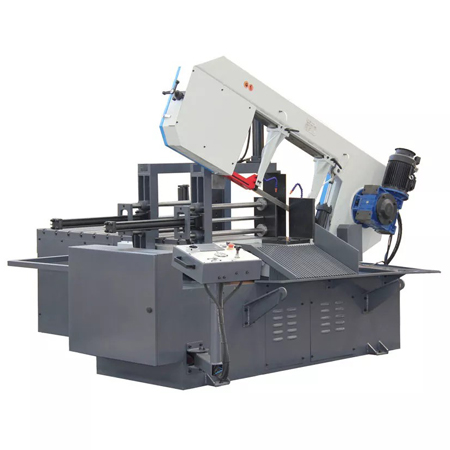

| Model | BS-650G | |
| Cut Circular @90° | 460mm(18″) | |
| Cut Rectangular @90° | 650x350mm (25.6″x13.8″) | |
| Cut Circular @60° (right) | 310mm (12.2″) | |
| Cut Rectangular @60° (right) | 310x350mm (12.2″x13.8″) | |
| Cut Circular @45° (right) | 460mm (18″) | |
| Cut Rectangular @45° (right) | 460x350mm (18″x13.8″) | |
| Blade speed | 23-95 rpm | |
| Blade size | 41×1.3×5220 mm | |
| Motor power | 5.5 kW Servo Motor | |
| Drive | Gear | |
| Packing size | 303x228x222 cm | |
| N.W./G.W. | 2430/2730 kg | |
Features:
1. Max. cutting 18″ at 90°
2. Automatic feeding and clamping
3. Hydraulic clamping vice
4. Saw frame swivel automatically
5. Industrial duty gearbox driven by a 5.5 kW servo motor
6. Variable cutting speed
7. Max. feeding length up to 650 mm each time
8. Linear scale indicator to record the feeding position
9. Swivel control panel mounted on base for quick operation
Standard Accessories:
Saw blade
Stop Rod
Coolant system
Optional Accessories:
Extra Stand and Support
