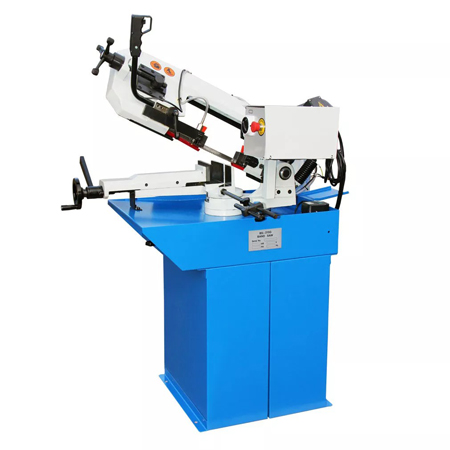

BS-215G Horizontal Band Saw

BS-215G Horizontal Band Saw

  • Model:BS-215G
  • Categories:Mitre Band Saw Machine
  • Circular @90° : 150mm
  • Rectangular @90° : 200x120mm
  • Email : contact@he-mu.com
Model BS-215G
Cut Circular @90° 150mm(6”)
Cut Rectangular @90° 200x120mm   (7.8”x4.7”)
Cut Circular @45° 120mm(4.7”)
Cut Rectangular @45° 130x90mm   (5”x3.5”)
Blade speed @50Hz 40/80 MPM
Blade  size 20X0.9X2060mm
Motor power 0.6/0.85kW  0.8/1.1HP (3PH)
Drive Gear
Packing size 116x71x79 cm (body)

61x39x67 cm (stand)
N.W./G.W. 212/245 kg

Features:

1. CE standard bandsaw, max cutting 6” at 90°

2. Cast iron saw frame miter max 45°

3. Quick action lock/release lever for swivel head

4. Coolant system to help clean chips on blade and lubrication the teeth

5. Electronic trigger handle lets you easily turn the saw on and off. Also for manual descent

6. Control panel mounted for easy access
