| Specification | Value / Description |
|---|---|

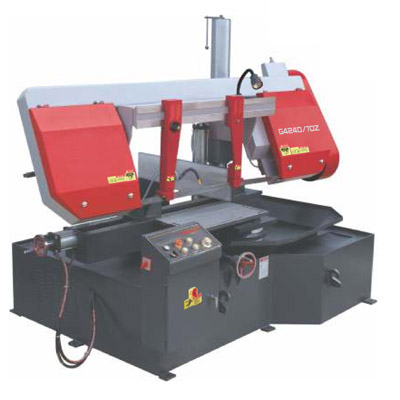

| Model | G4240/702 |
| Cutting Capacity (mm) | 90° ● 400 ■ 700W x 400H |
| 45° ● 400 ■ 400W x 400H | |
| Blade Speed (m/min) | 20/30/43/54/65 (multi-speed) |
| Blade Size (mm) | 41 x 1.3 x 5500 |
| Main Motor Power (kW) | 4.0 |
| Hydraulic Motor Power (kW) | 0.75 |
| Cooling Pump Power (kW) | 0.06 |
| Vise Clamping | Hydraulic |
| Blade Tension | Manual |
| Main Drive Structure | Worm gear drive |
| Table Height (mm) | 770 |
| Dimensions (LxWxH) (mm) | 2650 x 1800 x 1950 |
Features
1. In addition to straight cutting, the machine can be manually rotated to an degree of 0-45° to realie angle cutting of materials
2. Hydraulic stepless regulation for feeding and hydraulic automatic saw frame lifting
3. Hydraulic clamping and loosening of the workpiece, easy to operate
4. Saw blade guide with rlling bearings and carbide blocks
