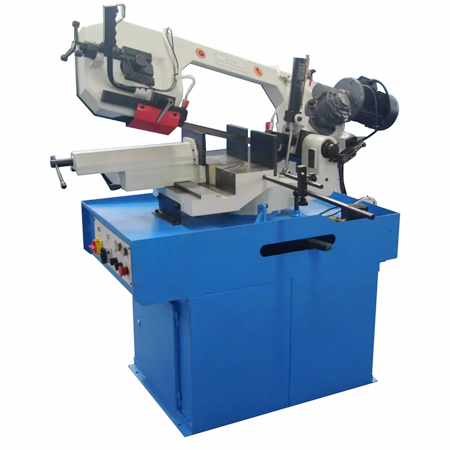

| Model | BS-315G | |
| Cut Circular @90° | 230mm(9”) | |
| Cut Rectangular @90° | 315X170mm (12.4”x6.7”) | |
| Cut Circular @60° | 130mm (5″) | |
| Cut Rectangular @60° | 130x130mm (5″x5″) | |
| Cut Circular @45° (left and right) | 210mm(8.25”) | |
| Cut Rectangular @45° (left and right | 210×170 mm (8.25”x6.7”) | |
| Blade speed @50Hz | 40/80 MPM | |
| Blade Speed @60HZ | 48/96 MPM | |
| Blade size | 27X0.9X2450mm | |
| Motor power | 0.75/1.1 kW 1.0/1.5 HP (3PH) | |
| Drive | Gear | |
| Packing size | 163x87x97 cm (body)72x56x60 cm (stand) | |
| N.W./G.W. | 350/400 kg | |
Features:
1. 9″cutting capacity at 90°
2. Three phase double speed motor
3. Gear drive, powerful cutting band saw machine
4. Hydraulic descent
5. Dual miter on both side, max. 60°
6. Quick action lock/release lever for swivel head
