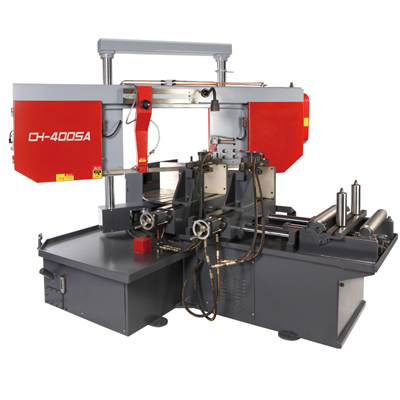

CH-400SA Miter Band Saw Machine for I-beams H-beams

CH-400SA Miter Band Saw Machine for I-beams H-beams

  • Model:CH-400SA
  • Categories:Mitre Band Saw Machine
  • Circular : 400mm
  • Rectangular : 500mm x 400mm
  • Email : contact@he-mu.com
Specification Value
Model CH-400SA
Cutting Capacity (mm) 90° ● 400 ■ 500W x 400H
45° ● 350 ■ 350W x 400H
Blade Speed (m/min) 20~80
Blade Size (mm) 41 x 1.3 x 5590
Main Motor Power (kW) 4.0
Hydraulic Motor Power (kW) 1.5
Cooling Pump Power (kW) 0.06
Single Feeding Stroke (mm) 400
Angle Rotation Hydraulic cylinder drive + rotary encoder
Hydraulic Tank Capacity (L) 50
Cooling Tank Capacity (L) 60
Table Height (mm) 755
Dimensions (L x W x H) (mm) 2950 x 2200 x 2200

Key Features:
Enhanced Cutting Capacity: Handles larger materials (500mm width at 90°) compared to CH-300SA.
Blade Specification: Thicker blade (1.3mm) with 5590mm length for durability.
Power Efficiency: Higher main motor (4.0 kW) balances performance and energy use.
Compact Footprint: Optimized dimensions (2950x2200x2200mm) for space-conscious workshops.

For comparison with other models (e.g., CH-300SA/600SA) or additional details, feel free to ask!

1.It is mainly suitable for angle cutting of profiles like large I-beams, H-beams and channel steels
2.Saw blade line speed stepless regulation by inverter
3.Hydraulic control angle rotation, hydraulic locking, rotary encoder automatically detects the rotation angle
4.PLC automatic control, touch screen operation, can set the rotation angle, feeding length and
cutting times at the same time
5.Hydraulic automatic feeding, high feeding accuracy and good stability
