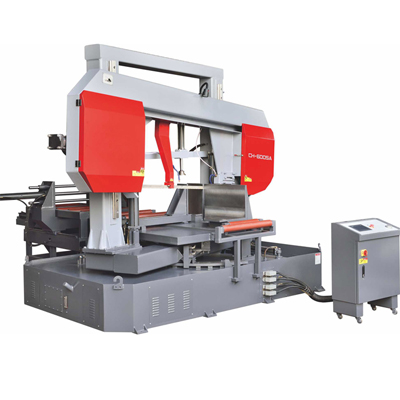

CH-600SA Miter Band Saw Machine for Metal Angle Cutting

CH-600SA Miter Band Saw Machine for Metal Angle Cutting

  • Model:CH-600SA
  • Categories:Mitre Band Saw Machine
  • Circular : 600mm
  • Rectangular : 700mm x 600mm
  • Email : contact@he-mu.com
Specification Value
Model CH-600SA
Cutting Capacity (mm) 90°● 600 ■ 700W x 600H
45°● 600 ■ 600W x 600H
Blade Speed (m/min) 20~90
Blade Size (mm) 41 x 1.3 x 8950
Main Motor Power (kW) 7.5
Hydraulic Motor Power (kW) 1.5
Cooling Pump Power (kW) 0.12
Single Feeding Stroke (mm) 500
Angle Rotation Hydraulic cylinder drive + rotary encoder
Hydraulic Tank Capacity (L) 100
Cooling Tank Capacity (L) 200
Table Height (mm) 995
Dimensions (L x W x H) (mm) 4400 x 4000 x 2500

Notes:
“Cutting Capacity” refers to the maximum material size the machine can cut at 90° and 45° angles.
“Blade Size” is given as thickness x width x length.
“Single Feeding Stroke” is the maximum movement in one operation.
“Angle Rotation” uses a hydraulic cylinder with a rotary encoder for precision.

1.It is mainly suitable for angle cutting of profiles like large I-beams, H-beams and channel steels
2.Saw blade line speed stepless regulation by inverter
3.Hydraulic control angle rotation, hydraulic locking, rotary encoder automatically detects the rotation angle
4.PLC automatic control, touch screen operation, can set the rotation angle, feeding length and
cutting times at the same time
5.Hydraulic automatic feeding, high feeding accuracy and good stability
