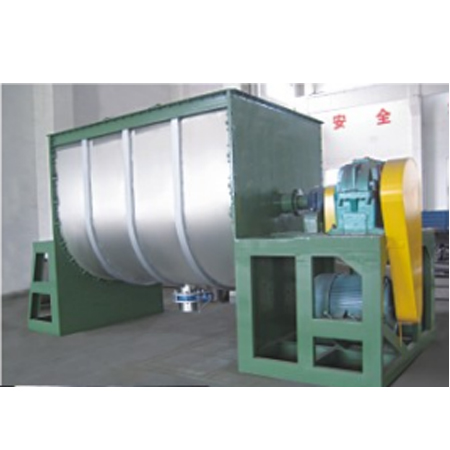

WLDH Series Horizontal Ribbon Mixer

WLDH Series Horizontal Ribbon Mixer

Model & Specs (m³) WLDH-0.1 WLDH-0.3 WLDH-0.5 WLDH-1 WLDH-1.5 WLDH-2 WLDH-3 WLDH-4 WLDH-6 WLDH-8 WLDH-10
Mixed amount/batch(kg) 30–50 100–150 200–300 400–600 600–900 800–1200 1200–1800 1600–2400 2400–3600 3200–4800 4000–6000
Equipped power(kW) 1.5–4 3–5.5 4–11 7.5–15 11–18.5 15–22 18.5–30 22–37 37–55 37–55 45–75
Dead weight(kg) 420 850 1060 1790 1900 2750 3500 4280 5300 6800 7800

Principle
This machine is composed of container, screw stirring paddles and transitionalparts; the screw paddle are generally made into 1 layer or 3 layers, the outerscrew converge is the material to the centre front two sides, and the inner layerof screw conveys the material to the two sides from the centre, so as to formconvection mixing. The cubage can be made into rotundity, so the jacket can beplayed in reaction and drying.

Features
Big coefficient of loading, small occupied area.
