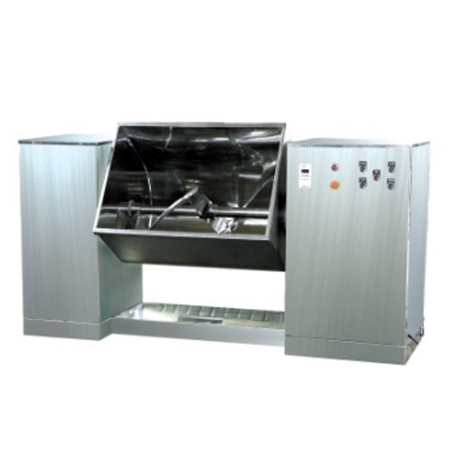

CH Series Notch Shape Mixer



Type Total volume

(m³)

Feed amount

(kg/batch)

Dimensions

(mm)

Stirring speed

(rpm)

Mixing power

(kW)

Discharge power

(kW)

150 0.15 30 1480×1190×600 24 3 0.55
200 0.20 40 1480×1200×600 24 4 0.55
300 0.30 60 1820×1240×680 24 4 1.5
500 0.50 120 2000×1240×720 20 5.5 2.2
750 0.75 150 2300×1260×800 19 7.5 2.2
1000 1.00 270 2500×1300×860 19 7.5 3
1500 1.50 400 2600×1400×940 14 11 3
2000 2.00 550 3000×1500×1160 12 11 4
2500 2.50 630 3500×1620×1250 12 15 5.5
3000 3.00 750 3800×1780×1500 10 18.5 5.5

Description
It is used to mix powdery or wet materials to make different proportions of main and auxiliary materials evenly mixed.
The contact points between the machine and the materials are made of stainless steel. The gap between the blade and the barrel is small, and there is no dead angle in the mixing. The two ends of the stirring shaft are equipped with sealing devices to prevent the material from leaking out. The hopper is controlled by button point, which is convenient for discharging.
It is widely used in pharmaceutical, chemical, food and other industries.
