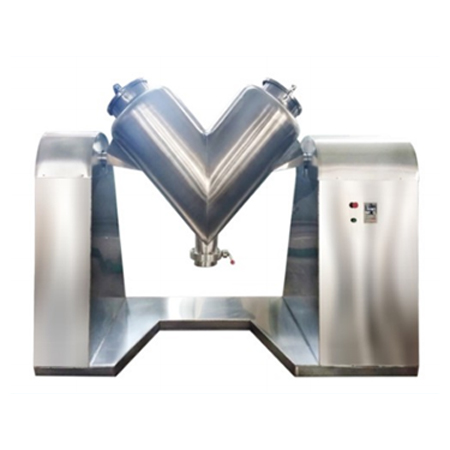

VHJ Series V Shape Dry Powder Mixer
- Model:VHJ Series
- Categories:Mixer Series
- Email : contact@he-mu.com
| Model and specification | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Productive capacity (kg/time) | 72 | 120 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
| Time of raw material fed in (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
| Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| Total volume (m³) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Stirring speed (r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
| Power of motor (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
| Rotating height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
This machine is suitable for mixing two or more dry and powder orgranule raw materials from pharmaceutical industry, chemicalindustry, foodstuff industry and so on.The structure of this machine is unique.
lts mixing efficiency is highand no dead corner.lt is made of stainless steel.
lts inner and outerwall is processed through polishing.lts appearance is beauty.Its mixing is uniform. lts scope of application is wide.
The forcedstirrer can also be equipped in order to meet the requirements ofraw materials that contain fine powder, cake and certain moistureas request.
Features
1. V type mixer machine features beautiful shape, uniform mixing and wide application.
2. In accordance with the user’s requirements, we can supply compulsory mixer for the powder and lump materials.
3. Stirring device can be added into V type mixing equipment to break easy-caking materials and further strengthens the mixing effect.

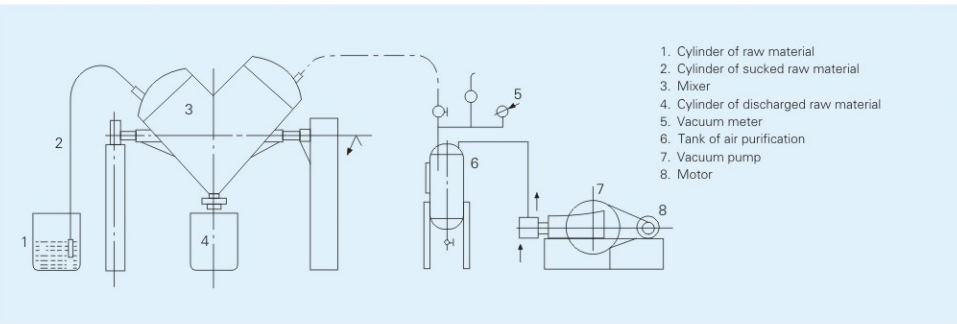

Sketch of structure
