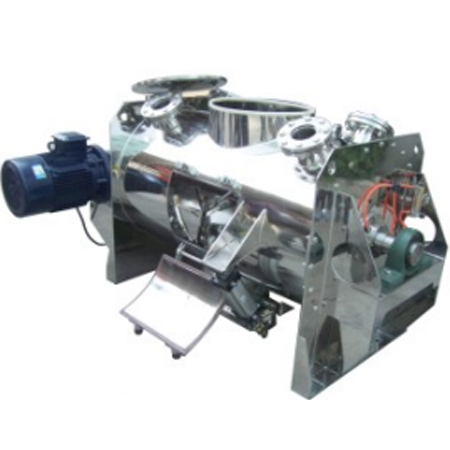

LDH Series Coulter Mixing Machine
- Model:LDH Series
- Categories:Mixer Series
- Email : contact@he-mu.com
| Model & Specs (m³) | LDH-0.1 | LDH-0.3 | LDH-0.5 | LDH-1 | LDH-2 | LDH-4 | LDH-6 | LDH-8 | LDH-10 | LDH-12 | LDH-15 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mixed amount/batch(kg) | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 | 4800-7200 | 6000-9000 |
| Equipped power (kW) | 6 | 8.4 | 9.9 | 23 | 30.5 | 38 | 38 | 46 | 53 | 65 | 82.5 |
| Dead weight (kg) | 430 | 950 | 1100 | 1800 | 2520 | 3220 | 6750 | 7200 | 7500 | 8500 | 9200 |
Description
This machine is composed of transmission aparatus.horizontal cylinder, colter flying cutter; under the action ofcolter,the materialconducts aturbulent flowcircumferentially along the cylinder wall, and the materials isthrown and sprinkled by the rotating flying-cutter at a highspeed when it flows through the flying cutter, thus thematerial is mixed evenly in a shorter time.
Features
1. The mixing time is short. lt has abetter adaptability to the mixing of thematerials, which has large differences insize and specific gravity.
2. Its construction feature is that it isespecially suitable for liquidaddingmixing or granulating wet particle, thesize is between 0.3-3mm.
