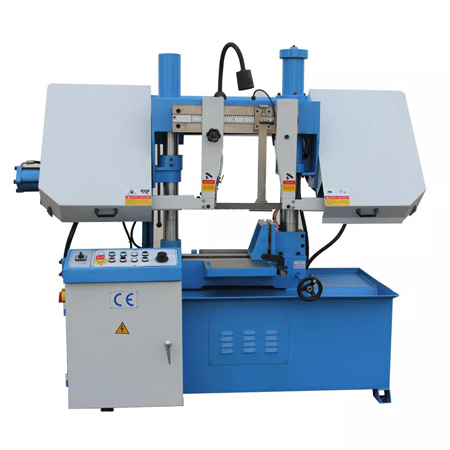

TGK-4240 Double Column Band Saw

TGK-4240 Double Column Band Saw

  • 12 months
    warranty

  • Warehouse

  • Technical
    support

Model TGK-4240
Max. cutting capacity ø400-400x400mm
Cutting speed 36, 56 m/min
Feed speed Hydraulic variable speed
Blade size 41×1.3×5000 mm
Workpiece clamping Hydraulic
Blade tensioning Hydraulic
Main motor power 3.0/4.0  kW
Hydraulic station 0.75 kW
Coolanty pump motor power 0.90 kW
Drive Gear
Overall dimension 270x135x215 cm
N.W./G.W. 1325/1585 kg

Features:

1. Double column structure, vertical lifting, high stability.

2. Cutting speed adopts hydraulic control, variable speed.

3. Hydraulic clamping, easy for operation.

4. Blade extension by hydraulic cylinder

Standard Accessories

Saw blade

Coolant pump

Working light

Material stand

Optional Accessories

Three position hydraulic clamping
