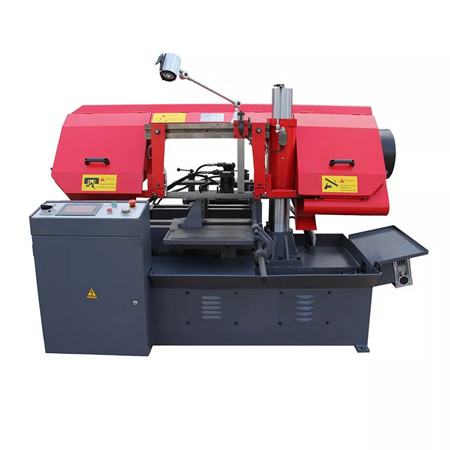

GZ4250H Automatic Horizontal Band Saw Machine for cutting profiles
Cutting Capacity
12 months
warranty
Warehouse
Technical
support
Model | BS-5040 |
Cut circular | 300mm (11.8″) |
Cut rectangular | 500x300mm (19.7″x11.8″) |
Blade speed @60HZ | 30, 50, 75, 90 MPM |
Blade size | 27×0.9x3280mm |
Motor power | 3.0 KW |
Max. hyraulic pressure | 2.5 Mpa |
Drive | V-belt |
Packing size | 226x213x178 cm |
N.W./G.W. | 1550/1720 kg |
Features:
1. Variable down feed speed, which is controlled by hydraulic cylinder
2. Hydraulic jaw clamping vice, making sawing more stable
3. Equipped with blade overload protection device
4. Adopt bearing and hard alloy double guide to extend the life of the blade
5. Auto feed, max. feeding length 500mm
6. User-friendly graphical control system with finger touch screen
7. Collocate with the work light that brings convenience for operation
8. High speed down before touch the work pieces
Standard accessories:
Saw blade
Coolant system
Working light
PLC, touch screen
