CLM4370 CNC Band Saw Machine
Cutting Capacity
TECHNICAL SPECIFICATIONS | ||||
MODEL | CH-280HA | |||
Cutting Capacity | 0° | round | φ280mm | φ11″ |
0° | square | 350mm W x 280mm H | 13-7/9″ W x 11″ H | |
0° | bundle | 200mm W x 130mm H | 7-7/8″ W x 5-1/8″ H | |
Drive Capacity | Blade Motor | 2.2KW | 3HP | |
Hydraulic Motor | 0.75KW | |||
Coolant Pump | 0.06KW | |||
Blade Speed | 20~80m/min by inverter | 66~262fpm by Inverter | ||
Blade Size (LxWxT) | 4100x27x0.9mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Hydraulic | |||
Main Drive | Wormwheel Drive | |||
Multiple Feed | 400mm x 9times | |||
Table Height | ||||
Machine Weight | 1500kg | |||
Machine Size (LxWxH) | 2200x1900x1700mm |

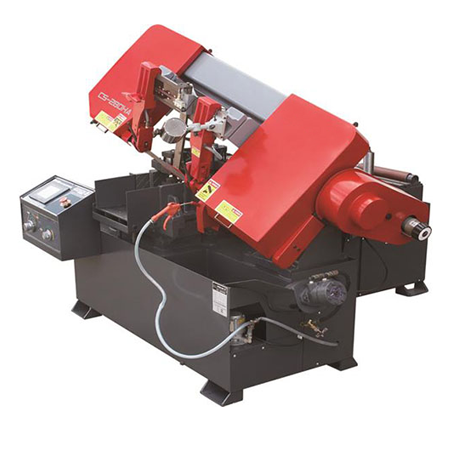

The CH-280HA automatic band saw machine is suitable for cutting solid materials, pipes and profiles of various materials, including but not limited to iron, steel, aluminum alloy and bearing steel. It is widely used in the mass production industry, especially suitable for batch sawing of automotive parts, bearings and gears.
This machine is operated by a touch screen, equipped with an internal PLC system, and runs fully automatically. The operator can program and store multiple cutting tasks, including the cutting length and the number of cuts. After setting the cutting task, the machine will automatically feed materials and start sawing.
This machine is equipped with main functions such as saw blade protection alarm, overload detection alarm, automatic shutdown at the end of cutting, automatic chip removal and bundle cutting.
This machine features high cutting efficiency, low energy consumption, high cutting accuracy and a rigid design to extend the service life of the saw blade.
