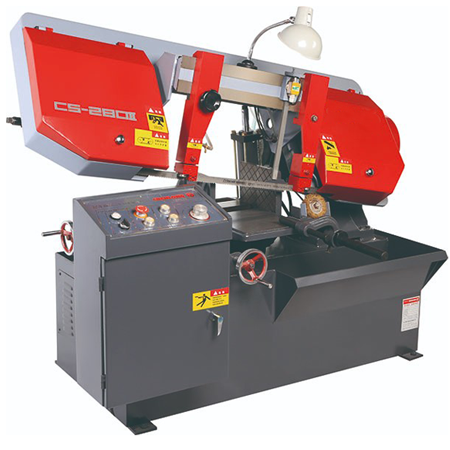

GZ4240 Fully Automatic Band Saw Machine
Cutting Capacity
MODEL | CS-280Ⅰ | CS-280 II | ||||
Cutting Capacity | 0° | ● | Ø280mm | Ø 11″ | Ø280 mm | Ø 11″ |
0° | ▅ | 350mm Wx250mm H | 13 3/4″ Wx9 7/8″ H | 300 mm Wx220 mm H | 11 4/5″ Wx8 2/3″ H | |
Drive Capacity | Main Motor | 2.2 kW | 2.2 kW | |||
Hydraulic Motor | 0.75 kW | 0.75 kW | ||||
Coolant Pump | 0.06 kW | 0.06 kW | ||||
Blade Speed | 27, 40, 54, 68, 80 m/min | 89, 131, 177, 223, 262 fpm | 25, 35, 45, 60, 80 m/min | 82, 115, 148, 197, 262 fpm | ||
Blade Size | 27×0.9×3505 mm | 27×0.9×3505 mm | ||||
Workpiece Clamping | Hydraulic Vise | Hydraulic Vise | ||||
Blade Tensioning | Manual | Manual | ||||
Main Drive | Wormwheel Drive | Wormwheel Drive | ||||
Table Height | 690 mm | 620 mm | ||||
Machine Size (LxWxH) | 1800x1050x1550 mm | 70 7/8″x41 1/3″x61″ | 1770x1130x1160 mm | 70″x45″x45 2/3″ |
This semi-automatic band saw can cut large stock all day long. A auxiliary table takes the effort out of moving materials. The steel frame reduces vibrations and ensures accuracy. For the job shop or low production service center. Cost-effective cutting of tubes, profiles, and solids. The optimum solution for processing of low piece numbers and one-off cuts.
Features
280 mm round cutting capacity
Minimal machine set-up and downtimes
Precision cutting lengths
Extreme operating and maintenance simplicity
Accepts standard 27×0.9×3505 mm blades
Comes standard with blade cleaning brush
Stop rod makes sure that your material will stop at the same length everytime to deliver repeatable results.
Adjust the belt on the pulley to change speed in the range 25/35/45/60/80 m/min.
Automatic work height control by fast approach bar sensor.
This metal band saw with 1-year parts warranty
we keep most replacement parts in stock for fast deliveries
Includes lifetime technical support , call us up or email to us whenever you run into a problem with the saw or need application advice.
Infinitely variable adjustment of the cutting feed
Coolant system
Manual Feed roller device
STANDARD EQUIPMENT
1. Blade Cleaning Brush
2. LED Work Light
3. Manual Work Height Control
4. Length Stop
5. Out Feed with Auxiliary Plate Table
6. Separate Material Roller Table
7. Security Switch
8. One Piece of Bi-metal Saw Blade
9. One Set of Tools with Tool Box
10. Instruction Manual
OPTIONAL
1. Hold-Down Device for Bundle Cutting
2. 2m Separate Material Roller Table
3. Inverter
