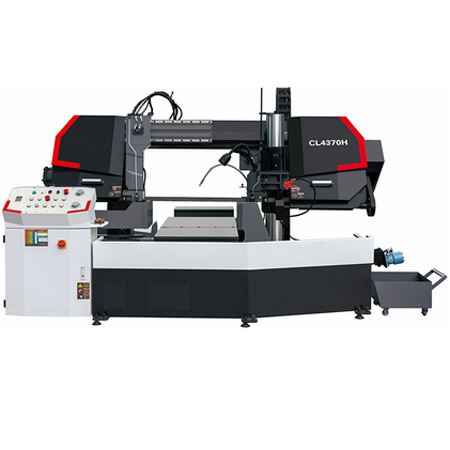

CL4370H horizontal band saw for mold steel


  • Model:CL4370H
  • Categories:Horizontal Band Saw Machine
  • Circular : Ø430 mm
  • Rectangular : 700W X 430H mm
  • Email : contact@he-mu.com

Model CL4370H
Cutting Capacity Round Material: Ø430 mm

Square Material: 700W X 430H mm

Saw Blade Specification(mm): 41X1.3X5900
Cutting Speed(m/min):  15-75 (Variable Frequency)
Saw Blade Tension Type:  Hydraulic
Main Motor(kW):  7.5(6P)
Hydraulic Motor(kW):  1.5
Cooling Pump(kW): 0.135
Control System PLC + Touch Screen + Buttons
Work Clamping Method Hydraulic
Feeding Method Hydraulic slide
Single Feed Stroke(mm) 800
Worktable Height(mm) 650
Overall Dimensions (LxWxH)(mm) 3300X2700X1900

This machine is mainly used for sawing mold steel and can adapt to the sawing of various ferrous metal materials. It has the characteristics of high cutting efficiency, energy saving, narrow sawing, energy saving and material saving, and simple operation.

This machine adopts a double-column structure to ensure structural reliability, stability and advancement. Each part has sufficient margin for function and also ensures high-quality sawing accuracy.
