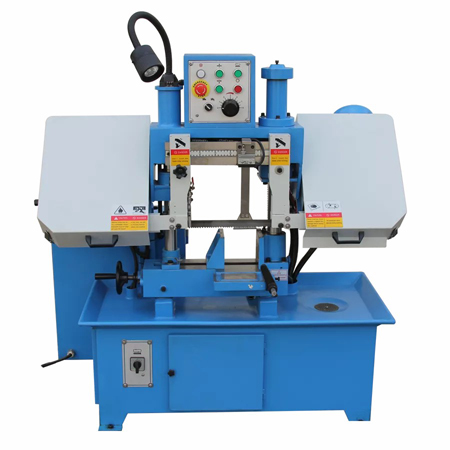

| Model | TGK-4220 |
| Max. cutting capacity | ø200-200x200mm |
| Cutting speed | 28, 45 m/min |
| Feed speed | Hydraulic variable speed |
| Blade size | 27×0.9x2650mm |
| Workpiece clamping | Hydraulic |
| Blade tensioning | Mechanical |
| Main motor power | 1.3/1.8 kW |
| Hydraulic station | 0.55 kW |
| Coolanty pump motor power | 0.04 kW |
| Drive | Gear |
| Overall dimension | 168x97x130 cm |
| N.W./G.W. | 360/460 kg |
Features:
1. Double column bandsaw, high stability
2. Hydraulic down feed control, variable speed
3. Gear drive, Double cutting speed
4. Limit switch, saw cutting automatically, and saw bow lift after cutting
5. Comes with one easy structure support for materials
6. Adjustable saw blade guide
Standard Accessories
Saw blade
Coolant pump
Working light
Material stand
