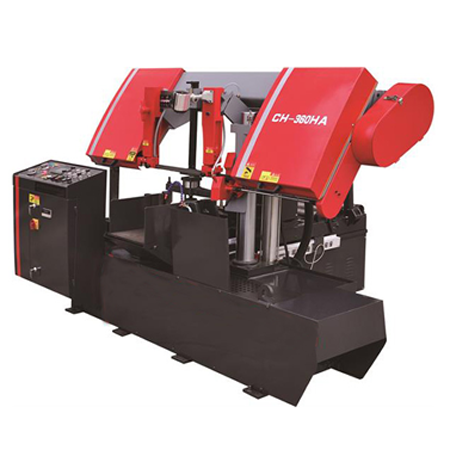

Need to increase production rates on large jobs? The CH-360HA automatic feed bandsaw’s hydraulic system can automatically clamp, cut, and feed bundles. The heavy steel frame on this 3 phase bandsaw maintains accuracy. In keeping with an exceptionally high standard of machine quality, this automatic band saw incorporates infinitely variable band speed and cutting force for optimum cutting results.
The automatic feed will help reduce scrap, labor costs, and errors, while the simple design and good quality components will ensure easy service and reduced down-time.

Features

P.L.C. control for all electric and hydraulic function.
Cuts up to 360 mm round and 360 x 360 mm rectangle at 90°.
Hydraulically controlled dual vise clamping system.
Infinitely variable speed control by inverter.
Hydraulic blade tensioning.
Roller bearing with carbide blade guide system.Automatic work height control by fast approach bar sensor.Preset cut counter with shut off. Out of stock shut off.Multiple indexing (9 times). Nesting fixture for bundle cutting. Power driven blade cleaning brush. Idler wheel motion detector with blade stalling and breakage shut off. Flushing hose for machine cleaning.
Desired number of parts controlled by electronic part counter.Carbide blade guides and rollers,Roller conveyor,Automatic blade breakage control,Hydraulic blade tension,Coolant system
Hydromechanical blade tension;Coolant system;Hydraulic vise;Infinitely variable belt speed 20-80 m/min (787–3,149”/min).user can fine-tune for your material;Automatic blade breakage control.
Accepts a standard 34×1.1×4420 mm blade for speed and precision.
Available in 380-volt 3-phase models .Also customized voltage for different customer.
Powerful 0.75 kW motor runs the low-pressure industrial-grade hydraulic system.
Touchscreen programmer is easy to use, so you can get to work right away.
Digital encoders helpful to feed the material to repeatable cuts.
Hydraulic large-capacity bundling system clamps the material tight to ensure a consistent cut across all of the pieces.
Programmer can run in manual or automatic mode.
Hydraulic blade tension device makes it simple to set the correct tension.
In case a blade breaks, automatic blade shut-off protects your safety.
Power blade cleaning brush and coolant system keep the saw clean and make blades last longer.
Bright halogen work light lets you clearly see what the machine’s doing.
We cover this double column automatic band saw with a 1-year parts warranty.

1. Power Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Roller
4. Automatic Work Height Control
5. Automatic Chip Conveyor
6. 2M Separate Material Roller Table
7. Hydraulic Blade Tension
8. NC Control(10 set cutting process)
9. Inveter
10. Hold Down Device for Bundle Cutting
11. Security Switch
12. One piece of Bi-metal Saw Blade
13. One set of Tools with Tool Box
14. Instruction Manual
