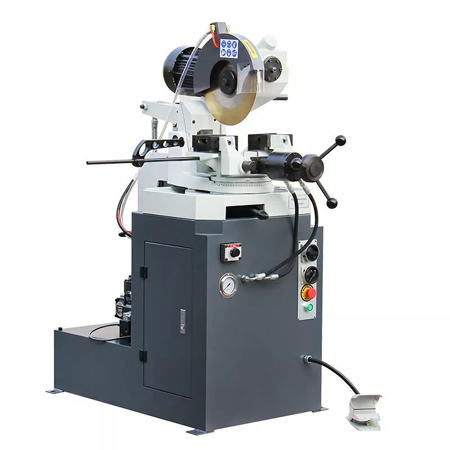

PDS-315H Hydraulic Circular Saw

PDS-315H Hydraulic Circular Saw

  • 12 months
    warranty

  • Warehouse

  • Technical
    support

Model PDS-315H
Max. blade size 315 mm
Capacity @45° (mm)  @90°(mm)
Round Pipe φ80 φ90
Rectangular pipe 60×60 80×80
Motor power 2.2/3.0 kW (2P/4P double speed)
Blade Speed 60/120 rpm
Travel of main hydraulic cylinder 130mm, max.10MPa
Travel of Hydraulic clamping cylinder 10 mm
Hydraulic station 4P, 750W, DC24V, 3MPa
Drive Gear
Packing size 146x75x166 cm
N.W/G.W 460/520 kg

Features:

1. Max. Blade Size: 315mm

2. Two different blade speed

3. Saw frame swivels ± 45°

4. Double vise design

5. Equipped with coolant system

6. Auto cutting, hydraulic clamping
