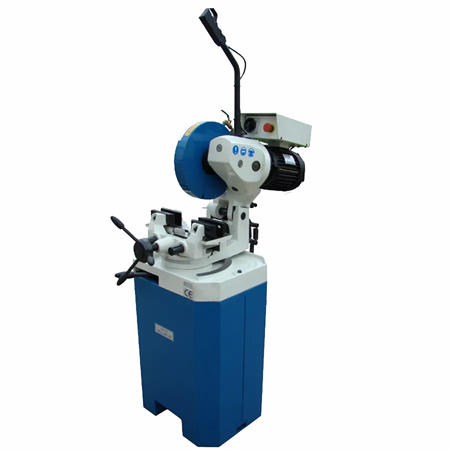

CS-350 Circular Saw

CS-350 Circular Saw

  • 12 months
    warranty

  • Warehouse

  • Technical
    support

Model CS-350
Max.  blade size 350mm (13.8″)
Cut circular @90° 120mm (4.7″)
Cut rectangular @90° 140×100 mm (5.5″x4″)
Cut circular @45° 105mm (4.1″)
Cut rectangular @45° 100x100mm (4″x4″)
Blade speed (50HZ) 18,36  rpm
Vice Opening 145mm (5.7″)
Motor power 750W 1HP/1.3 kW 1.7 HP (3PH)  1.1kW  1.5HP (1PH)
Drive Gear
Packing szie 98x62x95cm (body)

78x60x50cm (stand)
N.W./G.W. 236/270kg

Features:

1. Comes with a 350 mm saw blade

2. Cast iron gear box, direct gear drive

3. Saw head swivel on both side up to 45°, quick lock handle to fix the head.

4. Double cutting speed (single phase do not have)

5. Automatic blade guard cover the blade when returned to the home position

Standard accessories:

Saw blade

Coolant system

Stand
