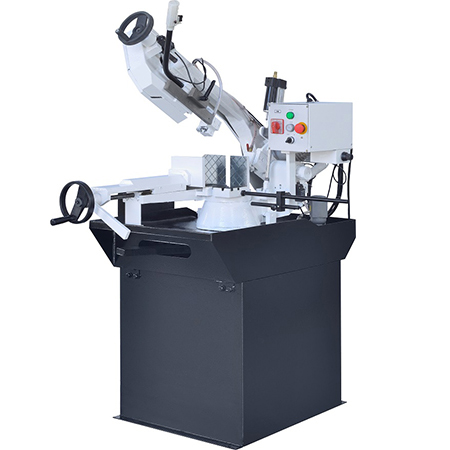

CS-280G MANUAL BAND SAW MACHINE


  • 12 months
    warranty

  • Warehouse

  • Technical
    support


MODEL CS-280G
Cutting Capacity round Ø220 mm 8 8/12″
rectangle 250 mm W x 150 mm H 9 9/11″ W x 5 9/10″ H
45° round Ø160 mm 6 2/7″
45° rectangle 160 mm W x 110 mm H 6 2/7″ W x 4 1/3″ H
60° round Ø100 mm 3 15/16″
60° rectangle 80 mm W x 90 mm H 3 1/7″ W x 3 4/7″ H
Drive Capacity Main Motor 1.1 kW, 0.75kW
Coolant Pump 0.04 kW
Blade Speed 32, 66 m/min
Blade Size 2470x27x0.9 mm
Workpiece Clamping Manual
Blade Tensioning Manual
Main Drive Direct-connected motor
Table
Weight 260 kg
Machine Size (LxWxH) 1330×800×1050 mm

This CS-280G manual band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.

Features
Cuts up to 250 mm round metal stock at 90°.
Swivel head miters up to 45°.
Angle changes takes seconds—and the vise stays in place.
Cast iron saw head and bow reduce vibrations and keep the saw accurate.
Accepts a standard 27×0.9×2470 mm blade.
Direct-connected motor with two speed adjustment 32 m/min and 66 m/min ,Manual descent with Using the pull-down arm .
Includes a powerful coolant pump that washes away metal chips, cools the blade teeth, and lubricates the blade, helping it last longer.
this metal-cutting band saw with a 1-year parts warranty.
We typically keep all replacement parts in stock for fast deliveries.
Weight is 260 kg.

STANDARD EQUIPMENT
1. Length Stop
2. Material Stand

OPTIONAL
1. 0.7m Material Roller Table
