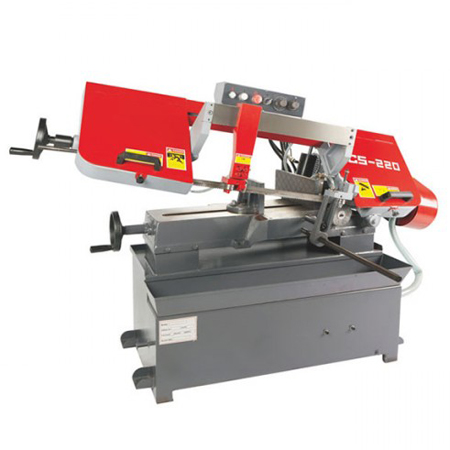

This CS-220 manual band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.

This Manual horizontal band saw is a machine with cutting capacity round 220 mm and square 400×100 mm. With a welded steel framework, the saw offers decades of precision.Runs on 380-volt three-phase power, so you can use it practically anywhere.

Features
Accepts standard 27×0.9×3045 mm blades.
Miters 45° cutting by swivel the vise .
Variable blade speed 21/34/43/60 m/min.
Stop rod makes sure that your material will stop at the same length every time to deliver repeatable results.
Comes standard with adjustable bearing blade guides that you can move as close to the material as possible for accurate cuts.
Handwheel to adjust the blade tension
Weight is 410kg.
this metal band saw with a 1-year parts warranty.

STANDARD EQUIPMENT
1. Blade Cleaning Brush
2. Length stop
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Instruction Manual

OPTIONAL
1. Separate Material Roller Table
