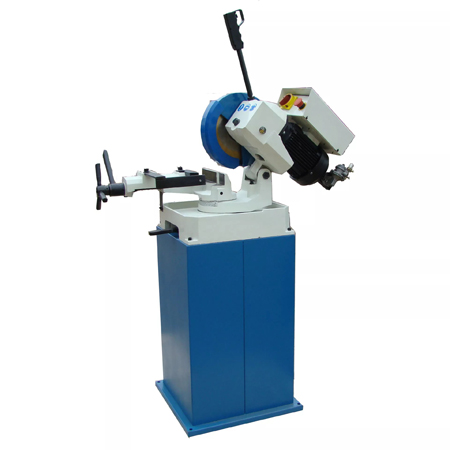

CS-275 Circular Saw

CS-275 Circular Saw

  • 12 months
    warranty

  • Warehouse

  • Technical
    support

Model CS-275
Max.  blade size 275mm (10.8″)
Cut circular @90° 70mm (2.75″)
Cut rectangular @90° 90×45 mm (3.5″x1.77″)
Cut circular @45° 65mm (2.56″)
Cut rectangular @45° 70x45mm (2.75″x1.77″)
Blade speed (50HZ) 42 rpm
Vice Opening 100mm (4″)
Motor power 1.1 kW   1.5HP
Drive Gear
Packing szie 86x58x78cm (body)

78x47x33cm (stand)
N.W./G.W. 148/174 kg

Features:

1. The cold saw come with 275mm HSS saw blade

2. Swivel gear head on both side, max. 45°

3. Quick lock for swivel head

4. Quick action vice clamp to increase production

5. Trigger switch provides operator safety on/off power control

6. Spring assisted hear return

Standard accessories:

Saw blade

Coolant system

Stand
