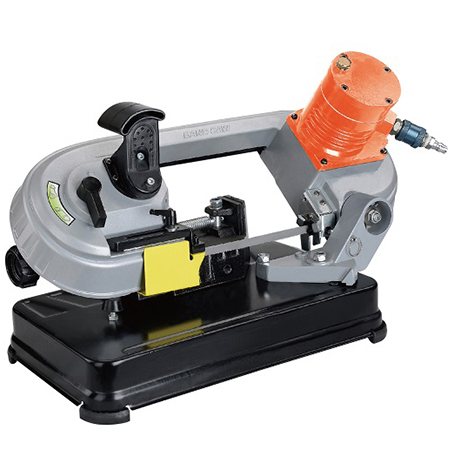

DLY-125W1 Portable Metalworking Band Saw Machine


  • Model:DLY-125W1
  • Categories:Manual Band Saw
  • Circular : ø125mm
  • Rectangular : 150×125mm
  • Email : contact@he-mu.com

Model DLY-125W1
Power 680W
Voltage 110V/220V
Frequency 50Hz/60Hz
Blade Size 13×0.65×1332mm
Blade Speed 1~1.9m/s
90º
Max Cutting Capacity@90º
Round Pipe ø125mm
Solid Round Steel ø50mm
Square Pipe 150×125mm
45º
Max Cutting Capacity@45º
Round Pipe ø55mm
Solid Round Steel ø50mm
Square Pipe 50×80mm
N.W/G.W 16/20kg
Machine Size 60×27×35cm
Machine Packing Size 68×34×45cm
2020-foot Cabinet Loading 250sets
4040-foot Cabinet Loading 500sets
Certificate CE Yes
EMC Yes

This portable band saw is designed for cutting metal solids and tubes with a variety of materials including, but not limited to, iron, steel, aluminum alloy, stainless steel, bearing steel. It also deal with non-metal materials like rubber, plastic, foam, wood, paper etc. It’s versatile and affordable options and is built especially for small parts processing shop or DIY use at home.

Features
Straight cut with 125 mm round capacity. And vise adjustment to 45 degree angle cut with 55 mm round capacity
Accepts standard 13 x 0.65 x 1332 mm blades.
Angle changes by swivel vise
Stop rod makes sure that your material will stop at the same length every time to deliver repeatable results.
Weighs just 20 kg, so you can transport it to project sites.
this metal band saw with a 1-year parts warranty.
We keep most replacement parts in stock for fast deliveries.
Includes lifetime technical support . Call us up or email to us whenever you run into a problem with the saw or need application advice.
