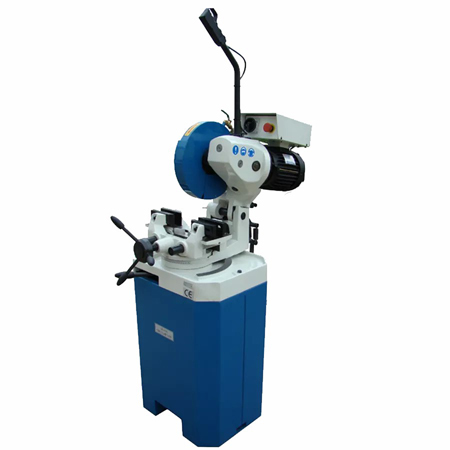

CS-315 Circular Saw

CS-315 Circular Saw

  • 12 months
    warranty

  • Warehouse

  • Technical
    support

Model CS-315
Max.  blade size 315mm (12.4″)
Cut circular @90° 100mm (4″)
Cut rectangular @90° 140×90 mm (5.5″x3.5″)
Cut circular @45° 90mm (3.5″)
Cut rectangular @45° 100x90mm (4″x3″)
Blade speed (50HZ) 18,36  rpm
Vice Opening 145mm (5.7″)
Motor power 750W 1HP/1.3 kW 1.7 HP (3PH)  1.1kW  1.5HP (1PH)
Drive Gear
Packing szie 98x62x93cm (body)

78x60x50cm (stand)
N.W./G.W. 227/261kg

Features:

1. Comes with a 315mm saw blade

2. Cast iron gear box, direct gear drive

3. Saw head swivel on both side up to 45°, quick lock handle to fix the head.

4. Double cutting speed (single phase do not have)

5. Automatic blade guard cover the blade when returned to the home position

Standard accessories:

Saw blade

Coolant system

Stand
