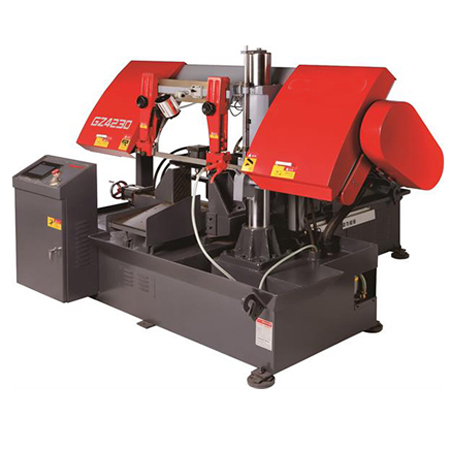

The hydraulic system of the GZ4230 double-column automatic feeding band saw machine can automatically clamp, cut and feed and bind materials. It is suitable for high-speed cutting of ferrous and non-ferrous metals, including aluminum, steel and other different types of materials. CNC production is efficient, precise and flexible.

Features
P.L.C. control for all electric and hydraulic function.
Cuts up to 300 mm round and 300 x 300 mm rectangle at 90°.
Hydraulically controlled dual vise clamping system.
Desired number of parts controlled by electronic part counter.Carbide blade guides and rollers,Roller conveyor,Automatic blade breakage control,Hydraulic blade tension,Coolant system
0.75 kW motor runs the low-pressure hydraulic system.
Cutting speed range is 25/45/63/81 m/min.
Accepts a standard 34×1.1×4115 mm blade for speed and precision.
Available in 380-volt 3-phase models
(Voltage can be customized make base on different country ).
Touchscreen programmer is easy to use, so you can get to work right away.
Digital encoders helpful to feed the material to repeatable cuts.
Hydraulic large-capacity bundling system clamps the material tight to ensure a consistent cut across all of the pieces.
Programmer can run in manual or automatic mode.
Power blade cleaning brush and coolant system keep the saw clean and make blades last longer.
In case a blade breaks, automatic blade shut-off protects your safety.
Bright halogen work light lets you clearly see what the machine’s doing.
Covered by a 1-year parts warranty.

STANDARD EQUIPMENT
1. Power Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Roller
4. NC Control
5. Security Switch
6. One Piece of Bi-metal Saw Blade
7. One Set of Tools with Tool Box
8. Instruction Manual

OPTIONAL
1. 2M Separate Material Roller Table
2. Variable Vise Pressure for Tube Cutting
3. Automatic Chip Conveyor
4. Hydraulic Blade Tension
5. Inverter
