Description:

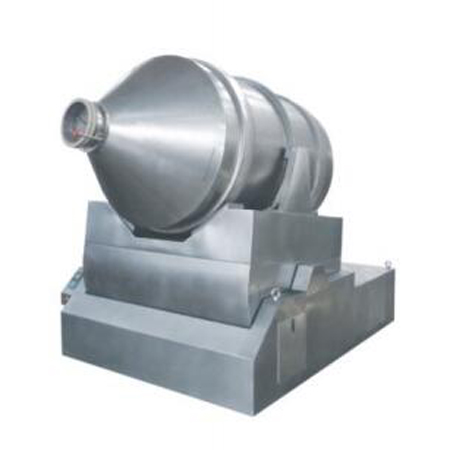

Two-dimensional mixer, full name two-dimensional movement mixer, as the name implies, refers to the drum can be carried out simultaneously in two directions of the mixer. The two motion directions are respectively the rotation of the rotating drum, which swings with the swing frame. The mixed material in the rotating drum rotates, flips and mixes with the rotating drum, and at the same time, the mixing movement occurs from left to right with the swinging of the rotating drum, the material is fully mixed in a short time.

Applications:
The mixers are widely used in pharmaceutical, food, dye, feed, chemicalfertilizer and pesticide industries and especially suitable for mixing varioussolid materials with large volume(1,000 to 12,000 litres).The mixing barrel swings while rotates so that the materials in the barrelcan be fully mixed.
Because the discharge port of the barrel is out of thebarrel centreline, the mixer features quick mixing and discharging, as wellas high volume mixing capacity.
The mixers are suitable for mixing powder and granulate materials inpharmaceutical, chemical, foodstuff, light industrial, electronic,machinery, mining, metallurgical and national defence industrials,featuring high evenness mixing.Because the mixing barrel moves in multiple directions, there is nocentrifugal force acting on the material, as well as no phenomena ofgravity segregation, delaminaton and accumulation of materials sothat the mixing rate can be up t0 99.9 percent for the materials with bigdifference in terms of specific gravity. Therefore,it is an ideal productcurrently compared with other various mixers.
The barrel has high loading ratelmax. 80 percent, however, only40 percent for the conventional mixers), so that it features highefficient and short mixing time. The barrel transitional radius everywhere, which has been superfinished.

Principle:
Driven by the driving shaft, the barrel with the materials loadedperformscycling compound movements of translation andtumbling, which make the materials move annularly, radially andaxially in the body: thus achieving mutual flow, spread,accumulation and mixing of materials for the purpose of fullymixing.

Features:
1.The second rotation adopts cycloid pin wheel reducer or worm wheel reducer. With the traditional mixer than the bottom of the material, no pollution, easy to FLUSH, really meet GMP requirements.
2.When working, under the double action of the rotating mechanism and the swinging mechanism, the charging cylinder rotates and swings at the same time, so that the materials in the cylinder can be fully mixed.
3.Equipment can be equipped with automatic vacuum feeding machine and interface, convenient feeding, shorten the operation time. High efficiency and low cost.
4.Two-dimensional moving mixer: simple structure, low failure rate, stable operation, safe operation, no noise, easy cleaning, in line with GMP requirements.
5.The volume is much smaller than the normal standard, the area is less, and the function is strong.
