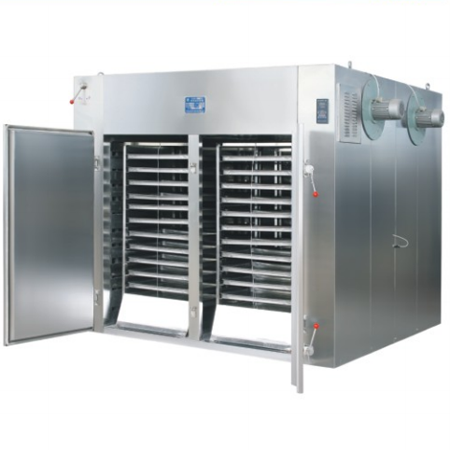

CT-C Series Hot Air Circulating Drying Oven

CT-C Series Hot Air Circulating Drying Oven

Spec. of Industry Standard Specification Batch Drying Capacity (kg) Power (kW) Steam to be Consumed (kg/h) Heat Exchange (m²) Velocity (m³/h) Temperature Difference (°C) Baking Trays Overall Dimensions (L×W×H) mm Baking Cart (set)
RXH-5-C CT-C-O 25 5 5 5 3400 ±2 8 1400×1200×1600 0
RXH-14-C CT-C-I-A 50 0.45 10 10 3400 ±2 24 1400×1200×2000 1
RXH-14-C CT-C-I 100 0.45 18 20 3450 ±2 48 2300×1200×2000 2
RXH-27-C CT-C-II 200 0.9 36 40 6900 ±2 96 2300×2200×2000 4
RXH-41-C CT-C-III 300 1.35 54 80 10350 ±2 144 2300×3220×2000 6
RXH-54-C CT-C-IV 400 1.8 72 100 13800 ±2 192 4450×2200×2000 8
RXH-25-A High effect and high temperature far infrared sterilization oven

The power will be equipped in accordance with the requirements of temperature.

 1200×1000×1600 –

1.Options of heat source: steam, electricity, or far infrared, or both steamelectricity.
2.Drying temperature: steam heating 50-130 ℃, Max.140℃
3.Electricity and far infrared:50-300.Automatic control system andcomputer control system on request.
4.Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5.For CT-C-l,electric heated, rated power consumption:15Kw, real
consumption :5-8Kw.
6.The special requirements should be indicated at the time of order.
7.Please consult as for any special requirements.
8.For operation temperature of over 140℃ or less than 60 ℃ , pleaseindicate when order.
9.The ovens and baking trays made byour factory are uniform indimensions, and can be exchanged each other.
10.Baking plate dimensions:460*640*45mm

CT-C series hot air circulation drying oven uses a low noise and hightemperature proof axial flow blower and an automatic temperaturecontrol system. The whole circulation system is the fully enclosed tomake that the heat efficiency of the drying oven increases from 3~7%of the traditional drying oven to 35~45% of the present one. Thehighest heat efficiency can reach 50%. The successful design of CT.Chot air circulation drying oven makes that the hot air circulation dryingoven in our country catch the advanced level both at home and abroad.In order to save a large quantity of the energy in out country, in order toenhance the economic results of the enterprises, in 1990, the medicinemanagement bureau of the State issued the industry standard and theuniform type is RXH.

Application
This drying oven is suitable for the material and product hot solidificationand dry de-watering in the pharmaceutical, chemical, food, farming,side-product, aquatic product, light industries, heavy industries andothers industries, Such as: raw material medicine, crude drug, preparedherbal medicine of Chinese traditional medicine, plaster, powder.particle, drinking agent, pill, packing bottle, pigment, dyestuff. de-watering vegetable, dried fruit piece,sausage, plastics, resin, electriccomponent, baking varnish and etc.

Features
Most hot air is circulated in the oven. The Heat efficiency is high and theenergy is saved,By using the forced ventilation function, there areadjustable air distribution plates inside the oven. The materials can bedried uniformly. The heating source might be steam, hot water, electricityand far infrared, With a wide selection, The whole machine is low in thenoise.The operation is in balance.The temperature is controlledautomatically. The installation and maintenance are easy. The applicationis wide. The machine can be used for drying various materials and is aversatile drying equipment.
