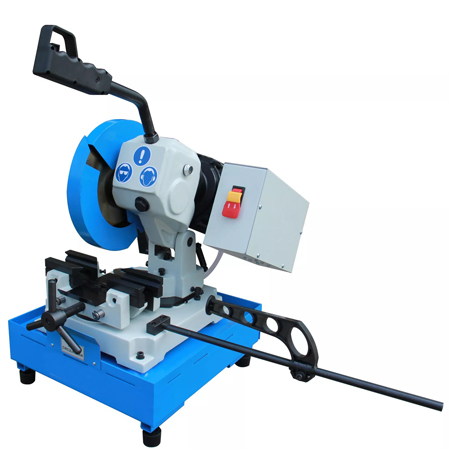

| Model | CS-225 |
| Max. blade size | 225mm/9″ |
| Cut circular @90° | 60mm (2.36″) |
| Cut rectangular @90° | 50x50mm (2″x2″) |
| Cut circular @45° | 52mm (2.05″) |
| Cut rectangular @45° | 50x50mm (2″x2″) |
| Blade speed (50HZ) | 46 rpm |
| Vice Opening | 70mm (2.8″) |
| Motor power | 750W 1 HP |
| Drive | Gear |
| Packing szie | 71x50x62cm |
| N.W./G.W. | 63/75 kg |
Features:
1. 9″ saw blade
2. Miters 45°to left side
3. Self-centering vise keeps the material in the right position with respect to the blade
4. Vise grips the material on both side
5. Direct drive gearbox
6. Stop rod helps with repeatability for small production rums
7. Single phase motor, suitable for home use purpose
Standard accessories:
Saw blade
Coolant system
Stop rod
