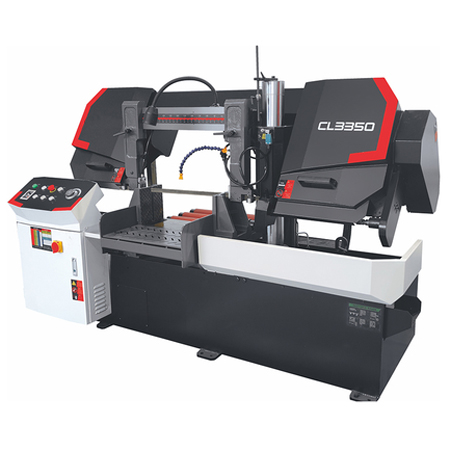

CL3350 CNC Horizontal Band Saw Machine For Die Steel

CL3350 CNC Horizontal Band Saw Machine For Die Steel

  • Model:CL3350
  • Categories:Horizontal Band Saw Machine
  • Circular : Ø330 mm
  • Rectangular : 500 (W) × 300 (H) mm
  • Email : contact@he-mu.com

Band Saw Machine Technical Specifications

Category Specifications
Cutting Capacity
– Round Material Ø330 mm
– Square Material 500 (W) × 300 (H) mm
Saw Blade
– Dimensions 34 (W) × 1.1 (T) × 4500 (L) mm
– Cutting Speed 15-80 m/min (Variable Frequency Control)
– Tensioning Method Hydraulic
Motor Power
– Main Motor 4 kW (4-Pole)
– Hydraulic Motor 0.75 kW
– Coolant Pump 0.135 kW
Control System PLC + Touch Screen + Push Buttons
Transmission & Feed
– Main Drive Worm Gearbox
– Feed Mechanism Hydraulic Stepless Speed Control
Clamping & Feeding
– Clamping Method Hydraulic Double Vise (Min. Clamping 50mm)
– Feeding Method Passive Roller Conveyor (No Automatic Feed Stroke)
Chip Removal Manual
Worktable Height Approx. 640 mm
Overall Dimensions 2380 (L) × 1170 (W) × 1450 (H) mm

It is suitable for sawing medium and large-sized metal profiles (round steel, square steel, etc.). The hydraulic system ensures stable clamping and feed, and the variable frequency speed regulation optimizes the cutting efficiency.
