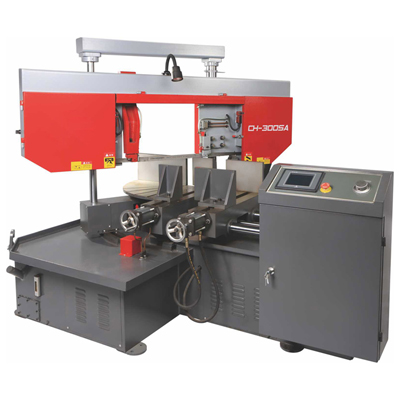

CH-300SA Miter Band Saw Machine for channel steels

CH-300SA Miter Band Saw Machine for channel steels

  • Model:CH-300SA
  • Categories:Mitre Band Saw Machine
  • Circular : 300mm
  • Rectangular : 350mm x 300mm
  • Email : contact@he-mu.com
Specification Value
Model CH-300SA
Cutting Capacity (mm) 90° ● 300 ■ 350W x 300H
45° ● 230 ■ 180W x 300H
Blade Speed (m/min) 20~110
Blade Size (mm) 34 x 1.1 x 4550
Main Motor Power (kW) 3.0
Hydraulic Motor Power (kW) 0.75
Cooling Pump Power (kW) 0.06
Single Feeding Stroke (mm) 400
Angle Rotation Hydraulic cylinder drive + rotary encoder
Hydraulic Tank Capacity (L) 30
Cooling Tank Capacity (L) 45
Table Height (mm) 735
Dimensions (L x W x H) (mm) 2200 x 2250 x 1800

Key Notes:
Cutting Capacity: Lists max cutting dimensions at 90° and 45° angles.
Blade Size: Format: Thickness (1.1mm) × Width (34mm) × Length (4550mm).
Angle Rotation: Uses a hydraulic system with an encoder for precision control.
Compact Design: Smaller dimensions compared to the CH-600SA  CH-400SAmodel.

1.It is mainly suitable for angle cutting of profiles like large I-beams, H-beams and channel steels
2.Saw blade line speed stepless regulation by inverter
3.Hydraulic control angle rotation, hydraulic locking, rotary encoder automatically detects the rotation angle
4.PLC automatic control, touch screen operation, can set the rotation angle, feeding length and
cutting times at the same time
5.Hydraulic automatic feeding, high feeding accuracy and good stability
