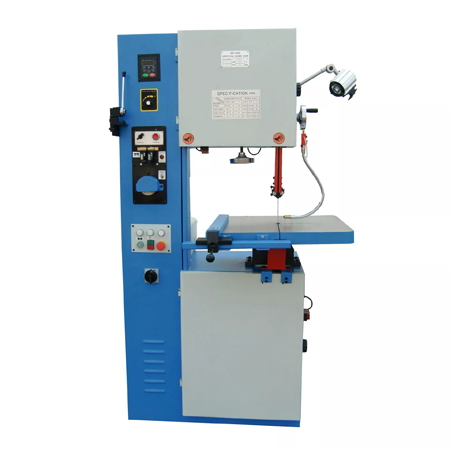

| Model | VS-500 |
| Cutting height | 310mm/12.2″ |
| Cutting width | 500mm/19.7″ |
| Table size | 660x700mm (26″x27.6″) |
| Motor speed | 0-1400 rpm |
| Length of saw blade | 3980-4050mm |
| Blade width | 3-16mm |
| Table tilt | R-30°, L-15° |
| Main motor/Grinder motor | 1.5kW (2HP)/ 0.09kW (1/8HP) |
| Electric welder | 2.4KVA |
| Packing szie | 140x90x220 cm |
| N.W./G.W. | 484/548 kg |
Features：
1. Wide 19.7″/500 mm throat depth
2. 12.2″/310 mm max. cutting height
3. Accept 3-16mm width saw blade
4. Variable cutting speed suit to cut different material
5. Digital readout let you know the blade speed
6. Saw blade cutting, welding and polishing
7. Welding table tilt on left and right
Standard accessories:
Saw blade
Working light
Blade repair: cutting, welding, polishing
Stop gauge
Optional accessories:
Servo Motor
