| Specification | Value / Description |
|---|---|

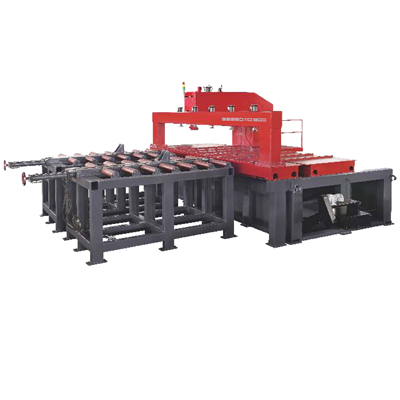

| Model | G5350/110/300 |
| Cutting Capacity | – Height (H): 1100 mm |
| – Width(D): 500 mm | |
| – Length (L): 3000 mm | |
| Blade Size | 41 × 1.3 mm |
| Blade Speed | 20–65 m/min (Inverter controlled) |
| Main Motor | 7.5 kW |
| Cooling Pump | 0.09 kW |
●If the common vertical saw is cutting along with X axis, this type vertical saw is cutting along with Y axis.
●The feed of the saw frame is driven by a hydraulic cylinder, and the feed guide adopts linear guide rails for a stable and reliable feed.
●Blade tension, guide arm movements and locking are hydraulic controlled, safe and reliable.
●It can be designed as rller feeding and hydraulic lifting feeding according to needs.
●Independent hydraulic station and control cabinet are convenient for operation and maintenance
1.Blade cleaning brush.
2.Working light
3.Saw frame height selector gauge
4.One piece of bi-metal saw blade.
5.One set of tools with tool box
6.Roller table 2M long
7.Hydraulic blade tension
8.Laser projector
9.Inverter
