| Specification | Value / Description |
|---|---|

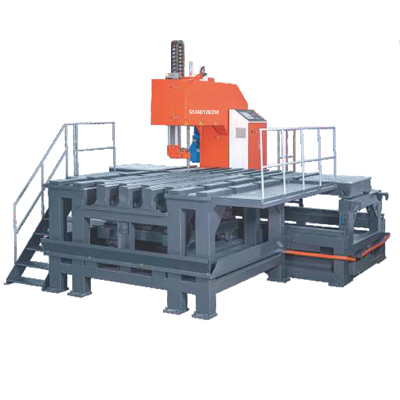

| Model | G5360/120/250 |
| Cutting Capacity | – Height (H): 600 mm |
| – Width (D): 1200 mm | |
| – Length (L): 2500 mm | |
| Blade Size | 54 × 1.5 × 8020 mm |
| Blade Speed | 20–75 m/min (Inverter controlled) |
| Main Motor | 7.5 kW (4P) |
| Hydraulic Motor | 2.0 kW |
| Cooling Pump | 0.55 kW |
●If the common vertical saw is cutting along with X axis, this type vertical saw is cutting along with Y axis.
●The feed of the saw frame is driven by a hydraulic cylinder, and the feed guide adopts linear guide rails for a stable and reliable feed.
●Blade tension, guide arm movements and locking are hydraulic controlled, safe and reliable.
●It can be designed as rller feeding and hydraulic lifting feeding according to needs.
●Independent hydraulic station and control cabinet are convenient for operation and maintenance
