| Specification | Value / Description |
|---|---|

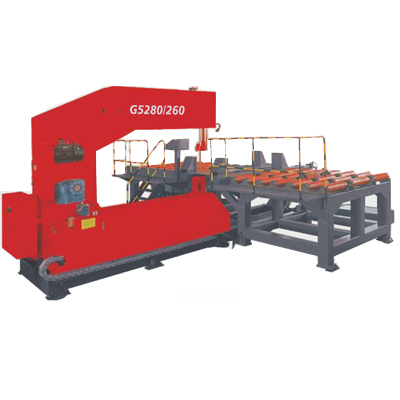

| Model | G5280/260 |
| Sawing Capacity | – Height (H): 800 mm |
| – Width(D): 2600 mm | |
| Blade Line Speed | 15–70 m/min |
| Blade Size | 54 × 1.6 mm |
| Main Motor | 11 kW |
| Hydraulic Motor | 2.2 kW |
| Cooling Motor | 0.37 kW |
●If the common vertical saw is cutting along with X axis, this type vertical saw is cutting along with Y axis.
●The feed of the saw frame is driven by a hydraulic cylinder, and the feed guide adopts linear guide rails for a stable and reliable feed.
●Blade tension, guide arm movements and locking are hydraulic controlled, safe and reliable.
●It can be designed as rller feeding and hydraulic lifting feeding according to needs.
●Independent hydraulic station and control cabinet are convenient for operation and maintenance
