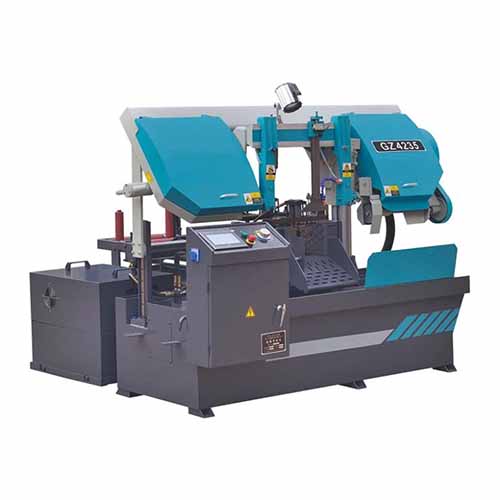

GZ4235 Automatic 14 Inch Bandsaw for Metal

GZ4235 Automatic 14 Inch Bandsaw for Metal

  • 12 months
    warranty

  • Warehouse

  • Technical
    support

Model GZ4235
Max Capacity 350 mm (14″)
350x350mm (14″ x 14″)
Blade Speed 29/44/54/78 m/min
Blade Size (W x T x L) 34×1.1×4470 mm (1.34″x0.043″x176″)
Blade Motor 3.0 kw
Hydraulic Motor 0.75 kw
Coolant Motor 0.04 kw
Clamping Hydraulic vise
Blade Tension Manual
Blade Cleaning Steel brush & flood coolant
Machine Size (L x W x H) 2300x2200x1600 mm

HMI touch screen numerical control

Enter the required length and number of pieces through the touch screen

Accurately locate the length through the grating scale

Hydraulic front and rear auxiliary clamping

Hydraulic upper clamp for cutting multi-layer sheets

Options

Hydraulic blade tension to save labor and extend blade life

Automatic chip conveyor

Frequency inverter with variable blade speed
