| Model | DLY-18F1 | ||
| Power | 250 W | ||
| Voltage | 110 V/220 V | ||
| Frequency | 50 Hz/60 Hz | ||
| Blade Size | 13×0.65×1745 mm | ||
| Blade Speed | 0.65 m/s | ||
| Max Cutting Capacity 90º | Round Pipe | Ø 180 mm | 7” |
| Solid Round Steel | Ø 100 mm | 3 15/16” | |
| Square Pipe | 180×200 mm | 7”x7 7/8” | |
| Max Cutting Capacity 45º | Round Pipe | Ø 100 mm | 3 15/16” |
| Solid Round Steel | Ø 100 mm | 3 15/16” | |
| Square Pipe | 100×100 mm | 3 15/16”x 3 15/16” | |
| N.W/G.W | 61/68 kg | ||
| Machine Size | 950×310×400 mm | ||
| Packing Size | 970×385×470 mm | ||
| 20” Container | 135 sets | ||
| 40” Container | 270 sets | ||

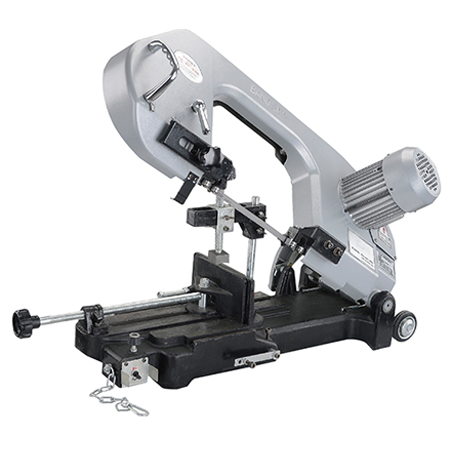

This DLY-18F1 manual band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace hacksaws and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
The DLY-180 portable band saw runs on 220-volt power. You can use it almost anywhere. We designed this manual model for small shops and hobbyists.
Features
180 mm round capacity. 100 mm round Angle cutting capacity at 45 degree
Accepts standard 13 x 0.65 x 1745 mm blades.
Weighs just 68 kg., so you can transport it to project sites.
this metal band saw with a 1-year parts warranty.
We keep most replacement parts in stock for fast deliveries.
Includes lifetime technical support . Call us up or email to us whenever you run into a problem with the saw or need application advice.
STANDARD EQUIPMENT
1. Blade Cleaning Brush
2. Length stop
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Instruction Manual
Cutting Capacity
Cutting Capacity
Cutting Capacity
Cutting Capacity
