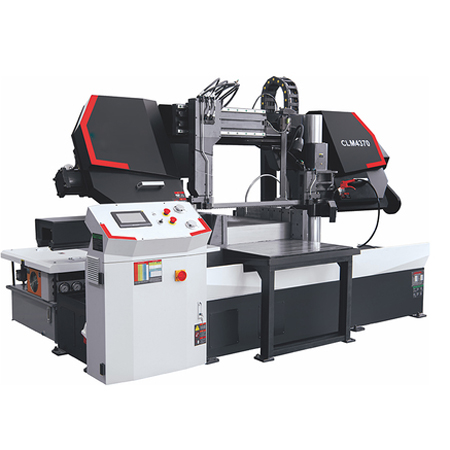

CLM4370 CNC Band Saw Machine

CLM4370 CNC Band Saw Machine

  • Model:CLM4370
  • Categories:Horizontal Band Saw Machine
  • Circular : Ø430 mm
  • Rectangular : 700(W) × 430(H) mm
  • Email : contact@he-mu.com

Band Saw Machine Technical Specifications

Category Specifications
Cutting Capacity
– Round Material Ø430 mm
– Square Material 700(W) × 430(H) mm
Saw Blade
– Dimensions 41(W) × 1.3(T) × 5900(L) mm
– Cutting Speed 15-75 m/min (VFD Control)
– Tensioning Method Hydraulic
Motor Power
– Main Motor 7.5 kW (6-Pole)
– Hydraulic Motor 1.5 kW
– Coolant Pump 0.135 kW
Control System PLC + Touch Screen + Push Buttons
Mechanical Systems
– Main Drive Worm Gearbox
– Feed Mechanism Hydraulic Stepless Speed Control
Clamping System
– Clamping Method Hydraulic Vise (Min. Clamping 120mm)
– Feeding Method CNC Hydraulic Vise (500mm Feed Stroke)
Chip Removal Hydraulic Screw Conveyor
Dimensions
– Worktable Height 680 mm
– Machine Footprint 3350(L) × 2250(W) × 1950(H) mm

Key Features:

Enhanced Precision: CNC-controlled hydraulic vise for accurate feeding

Improved Efficiency: 15-75 m/min variable cutting speed with VFD control

Heavy-Duty Performance: 7.5kW main motor handles Ø430mm round stock

Automated Operation: Hydraulic screw conveyor for continuous chip removal

Space Optimized: Compact 3350×2250mm footprint for workshop flexibility

This mid-range industrial band saw offers optimal performance for processing medium-sized metal stock with advanced CNC feeding capabilities. The hydraulic systems provide reliable operation while maintaining precision cutting performance.
