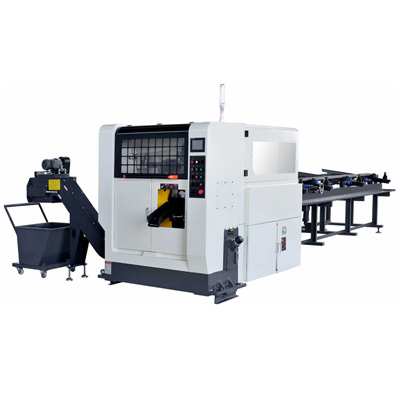

CL-75NC Circular saw machine

CL-75NC Circular saw machine

  • Model:CL-75NC
  • Categories:Circular Saw Machine
  • Round bar/tube : 10-75mm
  • Square bar/tube : 10-58mm
  • Email : contact@he-mu.com
Specification CL-75NC
Model CL-75NC
Sawing Capacity
– Round bar (mm) 10~75
– Square bar (mm) 10~58
– Round tube (mm) 10~75
– Square tube (mm) 10~58
Saw Head Spindle
– Use TCT super hard circular saw blade (mm) 285×2.0T
– Pin hole and hole diameter

(mm)

 4×Φ11×PCD63×Φ32
– Spindle motor (kW) 7.5(4P)
– Spindle speed (rpm) 40~160
Saw Head Feeding Method AC servo motor+ball screw | Swing feed
Main Clamping Vises Hydraulic type | one group for vertical and horizontal clamping
Chips Cleaning Device Passive round wire brush/active round wire brush (optional)
Gear Backlash Compensation Device Through shaft magnetic powder brake
Workpiece Feeding Device
– Workpiece Feeding Drive method AC servo motor+ball screw
– Feeding vise Clamping method Hydraulic | horizontal clamping
– Workpiece Front end removal length (mm) 10~ 99(This function could be closed on the touching screen)
– Workpiece Final remnant length (mm) 70+ a. (a is smaller than the setup cutting length)
– Single feeding length range (mm) 10~800
Automatic Workpiece Feeding Device
– Allowable length to be loaded (mm) 3000~6000
– Feeding method Pre-arranged rack
Hydraulic Device
– Hydraulic drive motor (kW) 2.25 (4P)
– Rated pressure of hydraulic system

(MPa)

 7.0
– Hydraulic tank capacity

(L)

 90
Machine Weight & Size
– Weight (kg) 2120
– Dimensions (L×W×H, mm) 6900 X 2540x 2000


Other Standard Equipment
– Anti-shock device for saw blade deflection Tungsten carbide parallel block
– Material distribution device Pneumatic
– Automatic lubrication system Timing and quantitative forced oil supply
– Tool lubrication system Quasi-dry oil mist lubrication
– Chip conveyor Chain plate type| continuous or intermittent operation


– Work lights LED | waterproof and dustproof

●Casting body, high rigidity body structure, specially designed for precise cutting of pipes and bars;
●TCT saw blade and HSS saw blade are both could be used, two machines in one;
●The main clamp adopts the international popular three-point clamp, which is firm and reliable;
●Active deflection feeding can avoid material surface damage and improve feeding accuracy;
The high-rigidity and high-precision spindle gearbox cooperates with the backlash elimination mechanism to make the feeding stable and greatly improve the tool life;
●One-button start, conversational touch input, simple and fast operation
