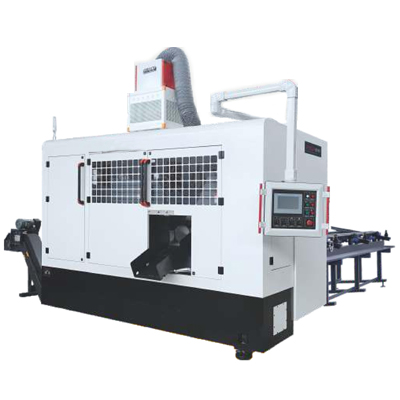

CL-200NC CL-260NC CL-300NC Circular saw machine

CL-200NC CL-260NC CL-300NC Circular saw machine

  • Model:CL-200NC / CL-260NC / CL-300NC
  • Categories:Circular Saw Machine
  • Round bar/tube : 100-300mm
  • Square bar/tube : 100-220mm
  • Email : contact@he-mu.com
Specification CL-200NC CL-260NC CL-300NC
Model CL-200NC CL-260NC CL-300NC
Sawing Capacity
– Round bar (mm) 100~200 150~260 150~300
– Square bar (mm) 100~145 150~195 150~220
– Round tube (mm) 100~200 150~260 150~300
– Square tube (mm) 100~145 150~195 150~220
Saw Head Spindle
– Use TCT super hard circular saw blade (mm) 630×3.4T 860×4.0T 960×4.2T
– Pin hole and hole diameter

(mm)

 4×Φ21×PCD120×Φ80 4×Φ26×PCD220×Φ80 4×Φ26×PCD220×Φ80
– Spindle motor (kW) 30(6P) servomotor 55(6P) servo motor
– Spindle speed (rpm) 20~80 15~60 15~60
Saw Head Feeding Method AC servo motor+ball screw | inclined push saw head feeding
Main Clamping Vises Hydraulic type | one group for vertical and horizontal clamping
Chips Cleaning Device Passive round wire brush/active round wire brush (optional)
Gear Backlash Compensation Device Through shaft magnetic powder brake
Workpiece Feeding Device
– Workpiece Feeding Drive method AC servo motor+ball screw
– Feeding vise Clamping method Hydraulic | horizontal clamping
– Workpiece Front end removal length (mm) 10~ 99(This function could be closed on the touching screen)
– Workpiece Final remnant length (mm) 130+ a. (a is smaller than the setup cutting length)
– Single feeding length range (mm) 10~650 10~800 10~800
Automatic Workpiece Feeding Device
– Allowable length to be loaded (mm) 3000~6000
– Feeding method Pre-arranged rack
Hydraulic Device
– Hydraulic drive motor (kW) 5.5 (4P) 7.5 (4P) 7.5 (4P)
– Rated pressure of hydraulic system

(MPa)

 7.0 8.5 8.5
– Hydraulic tank capacity

(L)

 150 150 200
Machine Weight & Size
– Weight (kg) 7200 10400 10400
– Dimensions (L×W×H, mm) 8000 X 3800x 2750 10800 X 4500 X 2600 10800 X 4500 X 2600
Other Standard Equipment
– Anti-shock device for saw blade deflection Tungsten carbide parallel block
– Material distribution device Pneumatic
– Automatic lubrication system Timing and quantitative forced oil supply
– Tool lubrication system Quasi-dry oil mist lubrication
– Chip conveyor Chain plate type| continuous or intermittent operation
– Work lights LED | waterproof and dustproof

●TCT saw blade and HSS saw blade are both could be used, two machines in one;
●The main damp adopts the intermational popular three-point cdamp, which is firm and reliable;
●Active deflection feeding can avoid material surface damage and improve feeding accuracy,
●The high-igidity and high-precision spindle gearbox cooperates with the backlash elimination mechanism to make the feeding stable and greatly improve the tool lite;
●One-button start, conversational touch input, simple and fast operation
