| Model | BS-916V |
| Cut circular @90° | 229mm (9″) |
| Cut rectangular @90° | 127x405mm (5″x16″) |
| Cut circular @45° | 150mm (6″) |
| Cut rectangular @45° | 150x190mm (6″x7.5″) |
| Blade speed @60HZ | 22-122 MPM 95-402 FPM |
| Blade speed @50HZ | 18-102 MPM 78-335 FPM |
| Blade size | 27×0.9x3035mm |
| Motor Power | 1.5kW 2.0HP (3PH) |
| Drive | V-belt |
| Packing size | 180x77x114 cm |
| N.W./G.W. | 300/385kg |

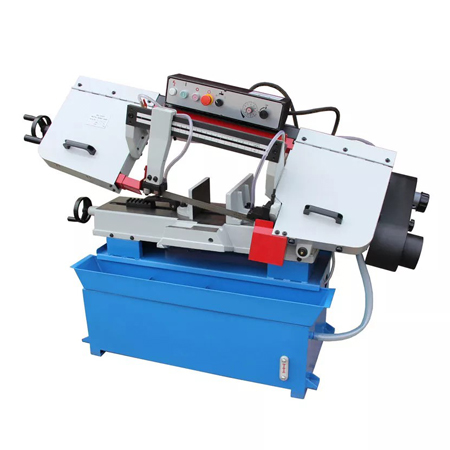

Features:
1. Max. cutting 9” round at 90°
2. Belt drive, variable cutting speed, cut almost anything can put on it.
3. Hydraulic descent pressure controlled by a panel located on top of the bow
4. Fully welded structure minimize vibrations to deliver clean, accurate cuts.
5. Standard coolant system to wash the chips on the blade, help blade life last longer
6. Stop Rod help you cutting reputably in the same size.
7. Fast clamp vice easy to hold the material
8. Miter vice max. to 45°
