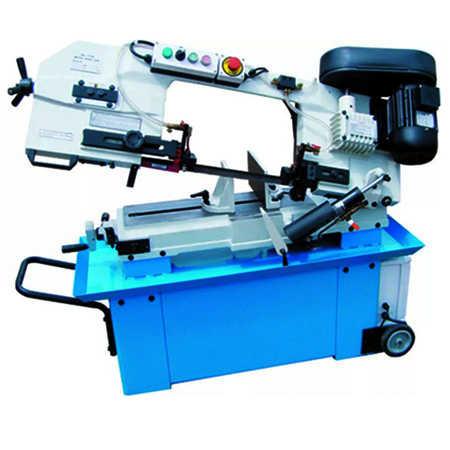

| Model | BS-912B | |
| Cut Circular @ 90° | 229mm(9”) | |
| Cut Rectangular @90° | 178x305mm(7″x12”) | |
| Cut Circular @45° | 150mm(6″) | |
| Cut Rectangular @45° | 127x150mm (5″x6″) | |
| Blade speed @60Hz | 32, 60, 88, 115 MPM | |
| Blade speed @50Hz | 26, 50, 73, 95 MPM | |
| Blade size | 27×0.9x2655mm | |
| Motor power | 1.1 kW 1.5HP(3PH), 1.1KW 1.5HP(1PH) | |
| Drive | V-belt | |
| Packing size | 154x59x115cm | |
| N.W./G.W. | 190/252kg | |
Features:
1. Max. cutting 9” round at 90°
2. Swivel clamp vice to 45°
3. Hydraulic cylinder control descent speed
4. Portable bandsaw with wheels on the stand
5. Coolant system to make the saw blade long working life
6. Belt drive bandsaw, could achieve 4 cutting speed
