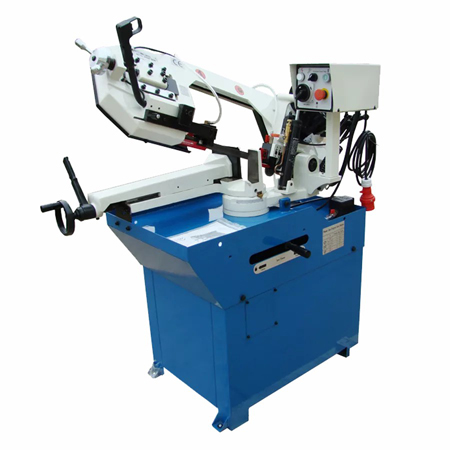

| Model | BS-260G | |
| Cut Circular @90° | 227mm(9”) | |
| Cut Rectangular @90° | 260x200mm (10”x7.9”) | |
| Cut Circular @60° | 90mm(3.5”) | |
| Cut Rectangular @60° | 85x85mm (3.5″x3.5″) | |
| Cut Circular @45° | 150mm(6”) | |
| Cut Rectangular @45° | 150x125mm (6”x5”) | |
| Blade speed @50Hz | 2P, 72 MPM 236 FPM; 4P, 36 MPM 118 FPM | |
| Blade speed @60Hz | 2P, 86 MPM 283 FPM; 4P, 43 MPM 141 FPM | |
| Blade size | 27 X 0.9 X 2455 | |
| Motor power | 0.75/1.1kw 1/1.5HP(3PH) | |
| Drive | Gear | |
| Packing size | 145x72x102 cm | |
| N.W./G.W. | 220/275kg | |
Features:
1. 9″ round and 10″x7.9″ rectangular cutting capacity at 90°
2. Cast iron saw frame max. miter 60°
3. Hydraulic descent
4. Quick action lock/release lever for swivel head
5. Coolant system as standard
6. Control panel mounted for easy access
7. Adjustable length stop for repetition cutting
