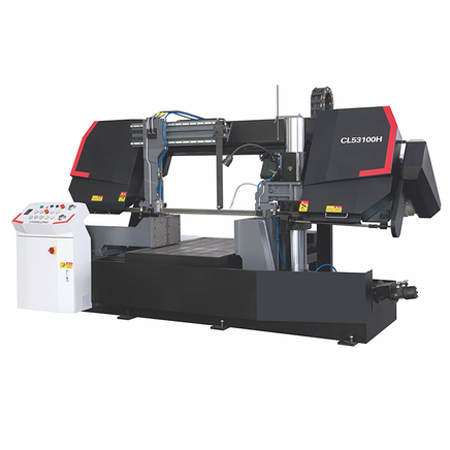

CL53100H CNC Horizontal Band Saw Machine

CL53100H CNC Horizontal Band Saw Machine

  • Model:CL53100H
  • Categories:Horizontal Band Saw Machine
  • Circular : Ø530 mm
  • Rectangular : 1000 (W) × 530 (H) mm
  • Email : contact@he-mu.com

Band Saw Machine Technical Specifications

Category Specifications
Cutting Capacity
– Round Material (Max.) Ø530 mm
– Square Material (Max.) 1000 (W) × 530 (H) mm
Saw Blade
– Dimensions 54 (W) × 1.6 (T) × 7500 (L) mm
– Cutting Speed 18-50 m/min (Variable Frequency Control)
– Tensioning Method Hydraulic
Motor Power
– Main Motor 11 kW (6-Pole)
– Hydraulic Motor 2.2 kW
– Coolant Pump 0.18 kW
Control System PLC + Touch Screen + Push Buttons
Transmission & Feed
– Main Drive Worm Gearbox
– Feed Mechanism Hydraulic Stepless Speed Control
Clamping & Feeding
– Clamping Method Hydraulic Double Vise
– Feeding Method Hydraulic Carriage (Single Feed Stroke: 800 mm)
Chip Removal Hydraulic Screw Conveyor
Worktable Height Approx. 650 mm
Overall Dimensions 3800 (L) × 2850 (W) × 2050 (H) mm

✔ Larger Cutting Capacity (Ø530mm round / 1000×530mm square)
✔ Heavier-Duty Saw Blade (54×1.6×7500mm)
✔ Higher Power Motors (11kW main motor, 2.2kW hydraulic)
✔ Fully Automated Chip Removal (Hydraulic screw conveyor)
✔ Hydraulic Carriage Feeding (800mm stroke for longer material processing)
✔ Larger Machine Footprint (3800×2850×2050mm for heavy-duty stability)

This model is suitable for industrial heavy-duty cutting of large metal billets, beams, and blocks. Let me know if you need further customization details!
