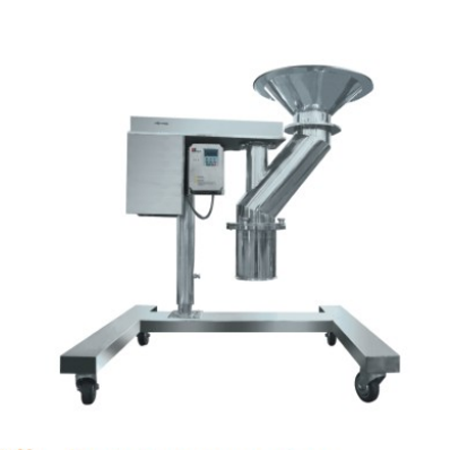

KZL High Speed Grinding Granulator



Model  100 180 300
Stator Diameter (mm) 100 180 300
Stator Length (mm) 98 178 298
Production Capacity (kg/h) 20-150 100-1500 200-2500
Power (kW) 1.1 1.5 3
Rotation Speed (rpm) 180-1400 175-1400 200-1400

Application
This machine is suitable for crushing and processing granule of Chinese traditional medicne. Western medicine, foodstuff, chemicals, pigments, feedstuff and so on.
The specifications and shapes of granule made by all kinds of granulating process and different granulator are different.Thegranul with basicsimilarshape and specification can be got when the granulated granule is cut by knives with high speed in this machine.
All parts in this machine are made of stainless steel. Its assembling and disassembling and cleaning are very convenient.

Features
There is less heat and dust in work.
The fixed screen is made from stainless steel and it can not damage easy.
The gap between crush knives and screen can be adjusted.
It can treat adhesive, glue, hot and wet raw materials.
