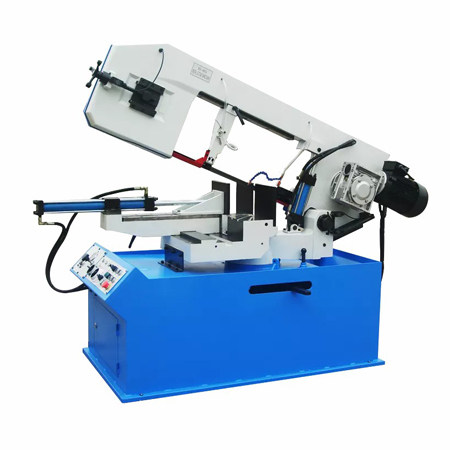

BS-460G Horizontal Band Saw

BS-460G Horizontal Band Saw

  • 12 months
    warranty

  • Warehouse

  • Technical
    support

Model BS-460G
Cut Circular @90° 330mm(13″)
Cut Rectangular @90° 460x250mm (18″x9.8″)
Cut Circular @60° 205mm (8″)
Cut Rectangular @60° 205x250mm (8″x9.8″)
Cut Circular @45° (left and right) 305mm (12″)
Cut Rectangular @45° (left and right 305x250mm (12″x9.8″)
Blade speed @50Hz 40/80 MPM
Blade Speed @60HZ 48/96 MPM
Blade size 27X0.9X3960mm
Motor power 1.5/2.2 kW
Drive Gear
Packing size 230x105x163 cm
N.W./G.W. 900/1060 kg

Features:

1. Max. cutting 330mm at 90°

2. Hydraulic clamping vice to fix the material well

3. Saw frame swivel on both side to get angle cutting

4. Quick lock of the saw frame swivel

5. Hydraulic descent of the saw frame

6. Gear drive, double speed motor

Standard Accessories:

Saw blade

Stop Rod

Coolant system

Optional Accessories:

PLC

Servo Motor
