| Technical Specifications | 430B |
| Cutting capacity 0° (flat) (length x width) | 430*430mm |
| Cutting capacity 0° (round) | 430mm |
| Cutting capacity 0° (square) | 430*430mm |
| Cutting speed infinitely variable | 18~80m/min |
| Stop length(single stroke) | 500mm |
| Accuracy of the feeding(single feeding) | ±0.2mm |
| Saw blade size | 41*1.3*5080mm |
| Saw blade tension type | Hydrualic |
| Workbench height | 745mm |
| Motor rating main drive | 7.5kw |
| Motor rating of hydraulic feed | 1.5kw |
| Overall dimensions (length x width x height) | 2750*2250*1710mm |
| Weight(NET WEIGHT) | 2778kgs |
| Blade size | 41*1.3*5080mm |

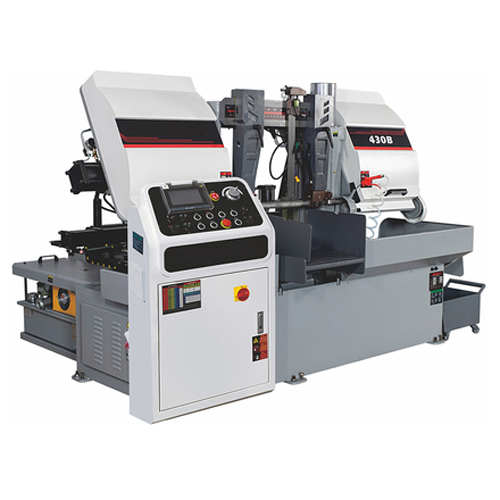

This machine is mainly used for sawing small and medium-sized bars, tubes and plates, and can adapt to the sawing of various ferrous metal materials. It has the characteristics of high cutting efficiency, energy saving, narrow sawing, energy saving and material saving, and simple operation.
This machine adopts a double-column structure to ensure structural reliability, stability and advancement. Each part has a margin function, and also ensures high-quality sawing accuracy.
Standard Equipment
Saw-band
Work-piece counter
Band break control
Coolant system
Hydraulic clamping
Feed roller table 700 m (27 inch)
Linear stop
Operator instructions
Optional Equipment
Bi-metallic band saw blade 41*1.3*5080mm
2 meter roller table for 430 bandsaw
Chip conveyor and trolley for 430 bandsaw
Hydraulic blade tentioning for 430 bandsaw
Clamping force regulation at Hydraulic station
